Fragmentation functions (FFs) encode essential information about the nonperturbative hadronization mechanism. According to the QCD factorization theorem [1], in a high-energy hadron collision experiment, the inclusive production rate of an identified hadron H at large transverse momentum is dominated by the fragmentation mechanism:
dσ[A+B→H(P⊥)+X]=∑idˆσ[A+B→i(P⊥/z)+X]⊗Di→H(z,μ)+O(1/P2⊥),
(1) where A, B represent two colliding hadrons,
dˆσ denotes the partonic cross section, and the functionDi→H(z) characterizes the fragmentation probability for the parton i to hadronize into a multi-hadron state that contains the specified hadron H carrying the fractional light-cone momentum z with respect to the parent parton. The sum in (1) is extended over all parton species (i=q,ˉq,g ). Similar to PDFs, FFs are also nonperturbative yet universal objects, whose scale dependence is governed by the celebrated Dokshitzer-Gribov-Lipatov-Altarelli-Parisi (DGLAP) equation:ddlnμ2Dg→H(z,μ)=∑i∫1zdξξPig(ξ,αs(μ))Di→H(zξ,μ),
(2) where we have taken the gluon fragmentation function as an explicit example, with
Pig(ξ) the corresponding splitting kernel, and μ is usually referred to as the QCD factorization scale. The μ dependence of the fragmentation function is such that it compensates the μ dependence ofdˆσ in (1), so that the physical production rate does not depend on this artificial scale. Once the FF is determined at some initial scaleμ0 by some means, one can deduce its form at another scale μ by solving the evolution equation (2).Unlike fragmentation into light hadrons, the fragmentation function for a parton to a heavy quarkonium is not necessarily a truly nonperturbative object. Owing to the weak QCD coupling at the length scale
∼1/m (m represents the heavy quark mass) as well as the nonrelativistic nature of heavy quarkonium, the nonrelativistic QCD (NRQCD) factorization approach [2] may be invoked to refactorize the quarkonium FFs as the sum of products of short-distance coefficients (SDCs) and long-distance yet universal NRQCD matrix elements [3, 4]. To some extent, the profiles of the quarkonia FFs are solely determined by perturbative QCD, which renders the NRQCD approach a particularly predictive theoretical framework. Recently, equipped with the knowledge of various fragmentation functions evaluated in this fashion, some phenomenological predictions based on (1) have been made to account for the large-P⊥ J/ψ ,χcJ andψ′ data samples collected in LHC experiments [5, 6].The original computation of FFs for quark/gluon fragmentation into the S-wave quarkonium was initiated by Braaten and collaborators using the NRQCD approach [3, 4]. Since then, a number of fragmentation functions for quark/gluon into various quarkonium states, including P- and D-wave quarkonia, have been calculated via the NRQCD approach during the past two decades (for an incomplete list, see Refs. [7–25]; for a recent compilation of various quarkonia FFs, see Ref. [26]).
Most SDCs associated with quarkonium FFs were known only at LO in
αs , except for the simplestg→3S(8)1 channel [16]. In 2014 the gluon fragmentation into the pseudoscalar (1S(1)0 ) quarkonium was computed to next-to-leading-order (NLO) inαs by Artoisenet and Braaten [20]. By that point, it is a rather challenging calculation, and the authors employed some complicated subtraction techniques to disentangle ubiquitous IR divergences. On the other hand, the NLO QCD correction to an analogous FF, i.e., gluon fragmentation into the S-wave spin-singlet color-octet Fock component of a charmonium,g→cˉc(1S(8)0 ), remains unknown to date. The calculational challenge is expected to be comparable with Ref. [20]. While theg→1S(1)0 fragmentation is useful forηc,b production at largeP⊥ , knowledge of theg→1S(8)0 fragmentation function is essential to augment our understanding ofhc,b production at largeP⊥ [25].The goal of this work is to evaluate the NLO QCD corrections to the fragmentation functions associated with both the gluon-to-
1S(1,8)0 quarkonia, yet at the lowest order in velocity expansion. We invoke some modern techniques widely used in the area of automated multi-loop computation, which are presumably much simpler than that used in Ref. [20].
-
According to the NRQCD factorization theorem [2], the gluon fragmentation function into charmonium H can be expressed as
Dg→H(z,μ)=d1(z,μ)m3⟨0|OH1(1S0)|0⟩+d8(z,μ)m3⟨0|OH8(1S0)|0⟩+⋯,
(3) where
d1(z,μ) andd8(z,μ) are the desired SDCs, and the corresponding NRQCD production operators are defined byOH1(1S0)=χ†ψ∑X|H+X⟩⟨H+X|ψ†χ,
OH8(1S0)=χ†Taψ∑X|H+X⟩⟨H+X|ψ†Taχ,
where ψ and
χ† represent two-component spinor fields that annihilate a heavy quark and a heavy anti-quark respectively, andTa (a=1,…,N2c−1 ) represents the generators of theSU(Nc) group in fundamental representation.The color-singlet and octet SDCs
d1,8 can be organized in an expansion inαs :d1,8(z,μ)=dLO1,8(z,μ)+αs(μ)πdNLO1,8(z,μ)+⋯.
(5) These SDCs at LO in
αs are well-known [4, 27]:dLO1(z,μ)=α2s2N2c[(1−z)ln(1−z)+32z−z2],
dLO8(z,μ)=α2s2N2c−4Nc(N2c−1)[(1−z)ln(1−z)+32z−z2],
where
Nc=3 is the number of colors.We choose to evaluate the gluon fragmentation function in a Lorentz frame such that H has vanishing transverse momentum. It is customary to adopt light-cone coordinates in calculating FF. Any four-vector
Aμ=(A0,A1,A2,A3) can be recast in the light-cone formatAμ=(A+,A−,A⊥) , withA±≡1√2(A0±A3) andA⊥≡(A1,A2) . The scalar product of two four-vectors A and B then becomesA⋅B=A+B−+A−B+−A⊥⋅B⊥ .To compute the NLO radiative correction to
d1,8(z) , let us specialize to the gauge-invariant operator definition for the fragmentation functions as coined by Collins and Soper long ago [28]. Note that this definition was first employed by Ma to compute the quarkonium FFs in the NRQCD approach [8]. For the desired g-to-H fragmentation function, we start from the operator definition [28] (also see Refs. [17, 19]):Dg→H(z,μ)=−gμνzD−32πk+(N2c−1)(D−2)∫+∞−∞dx−e−ik+x−×⟨0|G+μc(0)Φ†(0,0,0⊥)cb∑X|H(P)+X⟩⟨H(P)+X|Φ(0,x−,0⊥)baG+νa(0,x−,0⊥)|0⟩,
(7) where z denotes the fraction of the
+ -momentum carried by H with respect to the gluon,D=4-2\epsilon signifies the space-time dimensions,G_{\mu\nu} is the matrix-valued gluon field-strength tensor in the adjoint representation ofSU(N_c) , andk^+ = P^+/z is the+ -component momentum injected by the gluon field strength operator. μ is the renormalization scale for this composite nonlocal operator. The insertion of the intermediate states implies that in the asymptotic future, one only needs to project out those states that contain a charmonium H carrying the definite momentumP^\mu , with additional unobserved hadrons labeled by the symbol X.The gauge link (eikonal factor)
\Phi(0,x^-,{\bf 0}_\perp) in Eq. (7) is a path-ordered exponential of the gluon field, whose role is to ensure the gauge invariance of the FF:\begin{equation} \Phi(0,x^-,{\bf 0}_\perp)_{ba} = \mathrm{P} \exp \left[ {\rm i} g_s \int_{x^-}^\infty {\rm d} y^- n\cdot A(0^+,y^-,{\bf 0}_\perp) \right]_{ba}, \end{equation}
(8) where
\mathrm{P} implies the path-ordering,g_s is the QCD coupling constant, andA^\mu designates the matrix-valued gluon field in the adjoint representation.n^\mu =(0,1,{\bf 0}_\perp) is a reference null 4-vector.We proceed to calculate the SDCs
d_{1,8}(z) by the standard perturbative matching strategy, i.e., by replacing the physical charmonium H in (3) with the freec\bar{c} pair of quantum number^1S_0^{(1,8)} . Computing the QCD side from (7) in perturbation theory, and using the following NRQCD matrix elements,\begin{equation} \langle 0\vert {\cal O}^{c\bar{c}}_1(^1S_0) \vert 0 \rangle = 2N_c, \qquad \langle 0\vert {\cal O}^{c\bar{c}}_8(^1S_0) \vert 0 \rangle = N_c^2-1, \end{equation}
(9) one can readily solve for
d_{1,8}(z) order by order in\alpha_s .Since Eq. (7) is manifestly gauge-invariant, for simplicity we specialize to the Feynman gauge. Dimensional regularization, with spacetime dimensions

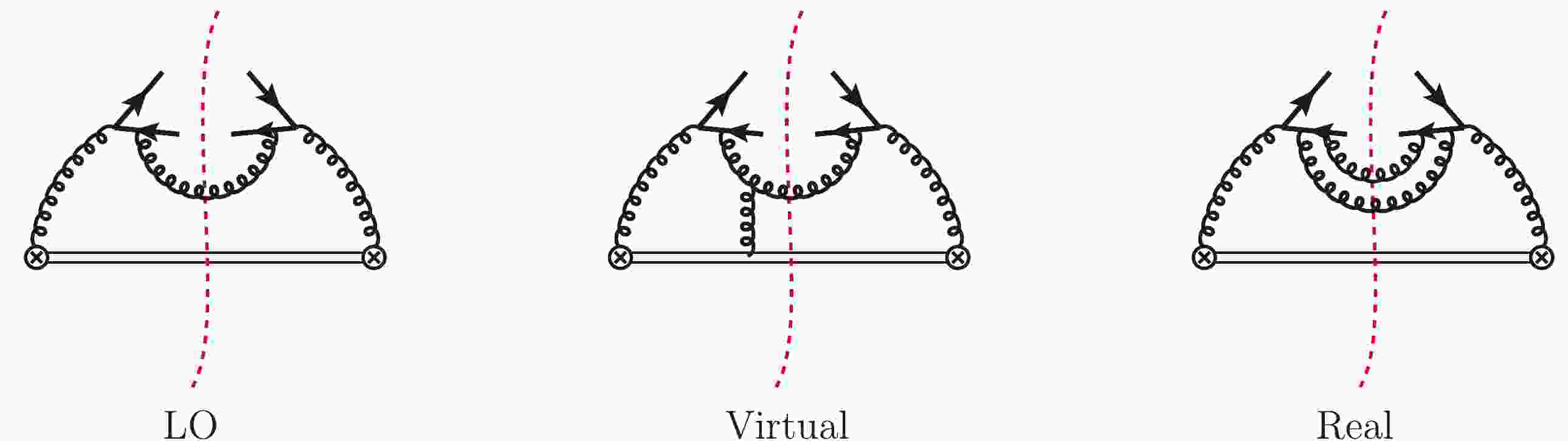

d=4-2\epsilon , is used throughout to regularize both UV and IR divergences. We wrote a private Mathematica interface to Qgraf [29] to automatically generate the left side of corresponding cut Feynman diagrams and generate the squared amplitudes that correspond to the perturbative fragmentation function defined in Eq. (7), by implementing the eikonal propagator and vertex [28] as well as those for conventional QCD propagators and vertices in the Qgraf model. Some typical Feynman diagrams ford_{1,8} through NLO in\alpha_s are shown in Fig. 1.Figure 1. (color online) Representative cut diagrams for the gluon fragmentation function
d_{g\to c\bar{c}(^1S_0^{(1,8)})}(z) . The cap represents the gluonic field strength operatorG_a^{+\nu} , and the double line signifies the eikonal line.To project the
c\bar{c} pair onto the intended spin/orbital/color states, it is convenient to employ the familiar covariant projector technique to expedite the calculation [30]:\Pi_1 = \frac{1}{\sqrt{8m^3}}\left({\not P\over 2}- m\right)\gamma_5 \left({\not P\over 2}+m\right) \otimes { \mathrm{1}_c \over \sqrt{N_c}}, \tag{10a}
\Pi_8^a = \frac{1}{\sqrt{8m^3}}\left({\not P\over 2}- m\right)\gamma_5 \left({\not P\over 2}+m\right) \otimes \sqrt{2} T^a, \tag{10b}
where
P^\mu designates the total momentum of thec\bar{c} pair, and\mathrm{1}_c is theN_c\times N_c -dimensional unit matrix. Since we are only interested in the LO contribution in velocity expansion, we have neglected in Ref. (10) the relative momentum between c and\bar{c} on both sides of the cut; consequentlyP^2=4m^2 .With the aid of the covariant projector (10), we utilize the packages FeynCalc/FormLink [31, 32] to conduct the Dirac/color trace operation. We also use the package Apart [33] to simplify the amplitude by the method of partial fractions, to make the loop integration in the next step easier.
A specific trait of the fragmentation function is its cut diagram structure, which results from the insertion of the asymptotic out states in (7). As a consequence, the corresponding cut-line phase space integration measure reads [17, 19]
{\rm d}\Phi_n = {8\pi m \over S_n} \delta\left(k^+-P^+-\sum\limits_{i=1}^n k_i^+\right) \prod\limits_{i=1}^n \frac{{\rm d}k^+_i}{2k_i^+}\frac{{\rm d}^{D-2}k_{i\perp}}{(2\pi)^{D-1}} \theta(k^+_i),
(11) where
n=1 for the virtual andn=2 for the real corrections,k_i satisfyingk_i^2=0 stands for the momentum of the i-th on-shell parton (gluon, light quark or antiquark in our case) that passes through the cut, andS_n is the statistical factor for n identical partons. For our purpose, it suffices to knowS_n=2 for the process with two out-going gluons, andS_1=1 for the other cases. It is important to note that integration overk_i^+ can be transformed into a parametric integration in a finite interval, but the integration over the transverse momentumk_{i,\perp} is completely unbounded, i.e., from-\infty to+\infty . This feature may persuade us that integration overk_{i,\perp} could be regarded as loop integration inD-2 -dimensional spacetime.The real correction diagrams are featured by those in Fig. 1 with two gluons passing through the cut besides the
c\bar{c}({}^1S_0^{(1,8)}) , while the virtual correction diagrams are defined as those with only one additional gluon passing through the cut. For the former type of contribution, it has been recently shown in Ref. [24] that the integration-by-part (IBP) technique developed in the area of multi-loop calculation can be effectively invoked to reduce the integrand into the linear combination of a set of simpler master integrals, which can then be analytically ascertained. The gluon fragmentations intoc\bar{c}({}^3S_1^{(1)}) andc\bar{c}({}^1P_1^{(1)}) have been analytically evaluated in this manner [24, 25].In this work, rather than utilize the IBP technique, we apply the influential sector decomposition method [34, 35] to evaluate both real and virtual correction diagrams. Consequently, we present our final results in an entirely numerical fashion. In our opinion, the approach used in this work appears to be more amenable to automated calculation, and yields more accurate numerical predictions than the subtraction approach adopted in Ref. [20].
The first step is to combine all the propagators in a cut amplitude using Feynman parametrization. For real correction contribution, it is straightforward to accomplish two-loop integration over
k_{1,2\,\perp} inD-2 -dimensional spacetime. We are then left with multi-fold integrals over Feynman parameters, which are ready and suitable for conducting sector decomposition with the help of the package FIESTA [36]. For virtual correction diagrams, the situation is somewhat more subtle. One cannot carry out the integration over loop momentum l in D-dimensional spacetime and the transverse momentumk_{1,\perp} inD-2 -dimensional spacetime simultaneously by following the standard Wick rotation and the Gaussian integration method due to the different integration dimensions. The key is to first integrate over l by the standard Gaussian method, and the resulting expression is still of quadratic form with respect tok_{1,\perp} , so we can continue to integrate overk_{1,\perp} using the Gaussian method, and end up with multi-fold integrals over Feynman parameters. This form is again suitable for conducting sector decomposition with the aid of FIESTA [36]. The role of the sector decomposition method [34, 35] is to disentangle various poles, typically with many finite multi-variable parametric integrals as output for the corresponding coefficients. We finally adopt the powerful integrators{\tt CubPack} [37] and{\tt ParInt} [38] to carry out those numerical integrations to high precision.Adding both real and virtual correction pieces, and implementing the contribution from the counterterm QCD Lagrangian (we renormalize the QCD coupling constant according to the
\overline{\rm MS} scheme), we find that the NLO SDCs in both color-singlet and octet channels are absent of IR poles, but still contain an extra single UV pole, whose coefficients are dependent on the momentum fraction z. This indicates that the fragmentation function still requires an additional operator renormalization [21, 28]:\begin{equation} D^{\overline{\rm MS}}_{g\to H}(z,\mu) = D_{g\to H}(z,\mu) - {1\over \epsilon}{\alpha_s\over 2\pi} \int_z^1 {{\rm d}y\over y}\, P_{gg}(y) D_{g\to H}(z/y,\mu), \end{equation}
(12) where
P_{gg}(y) represents the Altarelli-Parisi splitting kernel forg\to g :\begin{equation} P_{gg}(y) = 2N_c \left[ \frac{y}{(1-y)_+} + \frac{1-y}{y} + y(1-y) \right] + \beta_0 \delta(1-y), \end{equation}
(13) with
\beta_0=(11 N_c-2 n_f)/6 the one-loop QCD β function, andn_f=n_L+n_H signifies the number of active flavors. Heren_L denotes the number of light quarks, andn_H denotes the number of heavy quarks comprising the quarkonium. Note that in (12) the UV pole is subtracted in accordance with the\overline{\rm MS} procedure.Following the DGLAP renormalization procedure specified in (12), we then extract the intended finite SDCs
d^{\rm NLO}_{1,8}(z,\mu) through NLO in\alpha_s . It is convenient to divide them into several parts:\begin{aligned}[b] d^{\rm NLO}_{1,8}(z,\mu) =& c^{(1,8)}_0(z) \ln\frac{\mu}{m} + \alpha_s^2 \Big[ c^{(1,8)}_1(z) + n_L c^{(1,8)}_2(z) \\& + n_H c^{(1,8)}_3(z) \Big]. \end{aligned}
(14) For clarity, we have separated the light-quark contributions from those of heavy quarks.
The coefficient function of
\ln \mu can be analytically deduced:\begin{aligned}[b] c^{(1,8)}_0(z) \equiv & \int_{z}^1 \frac{{\rm d}y}{y} \Big[ P_{gg}(y) + 2\beta_0 \delta(1-y) \Big] d_{1,8}^{\rm LO}(z/y) = 3\beta_0 d_{1,8}^{\rm LO}(z) + \frac{\alpha_s^2}{6z} {\mathcal F}^{(1,8)} \bigg\{ \left(-6 z^2-12 z\right) \text{Li}_2(z)+\left(6 z-6 z^2\right) \ln^2(1-z) \\& + \left(6 z^2-6 z\right) \ln(1-z) \ln z+\left(-9 z^3+6 z^2+3 z+3\right) \ln(1-z) + \left(3 z^3-12 z^2\right) \ln z +\pi ^2 \left(2 z^2+z\right) +1 -9 z +17 z^3-9 z^2 \bigg\}, \end{aligned}
(15) with the color factors
\begin{aligned}[b] {\mathcal F}^{(1)} =&\frac{1}{N_c},\\ {\mathcal F}^{(8)} =& \frac{N_c^2-4}{N_c^2-1}. \end{aligned}
(16) We notice that (15) diverges as
1/z in thez\to 0 limit.It is impossible for our approach to deduce the analytical expressions for those non-logarithmic coefficient functions
c^{(1,8)}_{i}(z) (i=1,2,3 ). Nevertheless, for a given z, we can compute their numerical values to very high precision, within a relatively short time. For the reader's convenience, we have tabulated in Table 1 and Table 2 the values ofc^{(1,8)}_{1,2,3}(z) for a number of representative values of z.z c^{(1)}_1(z) c^{(1)}_2(z) c^{(1)}_3(z) z c^{(1)}_1(z) c^{(1)}_2(z) c^{(1)}_3(z) 0.05 −1.2635(2) 0.1932(2) 0.16065(8) 0.55 0.17598(9) 0.0825(2) 0.18142(8) 0.10 −0.46478(3) 0.2744(2) 0.24159(7) 0.60 0.1771(1) 0.0454(2) 0.15398(8) 0.15 −0.19605(4) 0.3106(2) 0.28783(7) 0.65 0.17507(8) 0.0119(2) 0.12961(8) 0.20 −0.05978(6) 0.3180(2) 0.31024(7) 0.70 0.17039(7) −0.0187(2) 0.10914(8) 0.25 0.02256(5) 0.3059(2) 0.31542(7) 0.75 0.1624(1) −0.0487(1) 0.09259(8) 0.30 0.07698(6) 0.2805(2) 0.30781(7) 0.80 0.1493(1) −0.0845(1) 0.07856(8) 0.35 0.11772(9) 0.2462(2) 0.29084(7) 0.85 0.12909(9) −0.1399(1) 0.06286(8) 0.40 0.14046(5) 0.2067(2) 0.26738(7) 0.90 0.09093(9) −0.2499(1) 0.03489(8) 0.45 0.15814(5) 0.1647(2) 0.23991(8) 0.95 −0.0102(1) −0.5280(1) −0.03512(8) 0.50 0.1694(1) 0.1227(2) 0.21061(8) 0.99 −0.4349(7) −1.3903(1) −0.20468(8) Table 1. Numerical values of non-logarithmic color-singlet coefficient functions
c_{1,2,3}^{(1)}(z) as introduced in (14). We caution that the actual values ofc^{(1)}_2(z) andc^{(1)}_3(z) should be multiplied by a factor10^{-2} .z c^{(8)}_1(z) c^{(8)}_2(z) c^{(8)}_3(z) z c^{(8)}_1(z) c^{(8)}_2(z) c^{(8)}_3(z) 0.02 −6.928(3) 0.1976(4) 0.1568(5) 0.55 0.3105(3) 0.155(3) 0.34016(6) 0.05 −2.4747(3) 0.362(4) 0.30134(6) 0.60 0.3486(4) 0.085(3) 0.28871(6) 0.10 −1.0082(3) 0.515(4) 0.45336(6) 0.65 0.3845(3) 0.022(3) 0.24302(6) 0.15 −0.5161(3) 0.582(4) 0.53967(6) 0.70 0.4189(4) −0.035(3) 0.20464(7) 0.20 −0.2620(3) 0.596(4) 0.58170(6) 0.75 0.4522(3) −0.091(3) 0.17361(7) 0.25 −0.1020(3) 0.574(4) 0.59142(6) 0.80 0.4818(3) −0.158(2) 0.14731(7) 0.30 0.0109(3) 0.526(4) 0.57714(6) 0.85 0.5001(3) −0.262(2) 0.11787(7) 0.35 0.0964(3) 0.462(4) 0.54532(6) 0.90 0.4785(3) −0.469(2) 0.06541(7) 0.40 0.1644(3) 0.388(4) 0.50134(6) 0.95 0.2864(4) −0.990(2) −0.06585(7) 0.45 0.2200(5) 0.309(3) 0.44983(6) 0.98 −0.2839(3) −1.8829(1) −0.26181(6) 0.50 0.2681(5) 0.230(3) 0.3949(5) 0.99 −0.9373(9) −2.6068(2) −0.38376(6) Table 2. Numerical values of non-logarithmic color-octet coefficient functions
c_{1,2,3}^{(8)}(z) defined in (14). We caution that the actual values ofc^{(8)}_2(z) andc^{(8)}_3(z) should be multiplied by a factor10^{-2} .For numerical investigation, we take μ as twice the heavy quark mass, and adopt the following input parameters [39, 40]:
\begin{aligned}[b] m_c =& 1.68\,\text{GeV},\quad m_b=4.78\,\text{GeV},\\ \alpha_s(2m_c)=&0.242,\quad \alpha_s(2m_b)=0.180. \end{aligned}
(17) We have taken
n_L=3,4 for charmonium and bottomonium, respectively, and sentn_H = 0 son_f=n_L .The profiles of SDC
d_{1,8}(z) through the NLO in\alpha_s are displayed in Fig. 2, for gluon fragmentation into both charmonium and bottomonium. Apparently, the NLO QCD corrections have a significant impact on both channels, qualitatively changing the shape of LO fragmentation functions. It should be mentioned that our result ford_{1}^{\rm NLO}(z) disagrees with that in Ref. [20], especially in the low z region. Since we already know from (15) that ourd_{1,8}^{\rm NLO}(z,\mu) divergences\propto 1/z inz\to 0 limit, we are thereby unable to present a finite prediction to the total fragmentation probability at NLO in\alpha_s .Figure 2. (color online) SDCs
d_{1,8}(z) associated with gluon fragmentation into quarkonium, including the NLO QCD corrections. The two figures in the top row correspond tod_1(z) for gluon fragmentation into the color-singlet charmonium and bottomonium, while the two figures in the lower panel correspond tod_8(z) for gluon into the color-octet charmonium and bottomonium.
