Multinucleon transfer products in ⁴⁸Ca, ⁵⁴Cr +²⁴³ Am and ⁵⁴Cr +²³⁸ U reactions

Contemporary nuclear physics research endeavors to expand the boundaries of the periodic table and elucidate the fundamental principles governing nuclear stability [1]. The synthesis of superheavy nuclei (SHN) constitutes an important research focus on modern nuclear physics, including rigorous investigations of shell evolution phenomenon, structural properties, and the island of stability associated with SHN [2−9]. While element 118 (Oganesson) currently holds distinction as the heaviest element experimentally confirmed [2], the existence of elements with proton numbers $ {\rm{Z}} \geq 119 $ remains undiscovered and constitutes the next frontier in elemental discovery [10, 11]. This research domain presents significant technical challenges in nuclear synthesis and detection methodologies, while simultaneously offers opportunities for breakthrough discoveries in nuclear structure physics [11−13].

Projectile fragmentation, fission and fusion reactions serve as versatile tools for producing new nuclei in laboratories. For the synthesis of SHN, fusion reaction is currently the conventional approach. However, model calculations indicate that multinucleon transfer (MNT) reactions at energies near the Coulomb barrier exhibit larger cross sections for the production of isotopes of elements up to $ {\rm{Z}}\sim 108 $ [14−16]. Experimental studies have demonstrated that MNT reactions are more efficient due to their broad excitation functions, which allow for the simultaneous production of a wide range of different isotopes under the same experimental conditions, whereas fusion reactions only yield a limited number of isotopes. MNT occurs in deep-inelastic collision reactions at energies close to the Coulomb barrier. The core mechanism involves the formation of a dinuclear system (DNS) resembling a molecule under the influence of nuclear forces between the projectile and target nuclei. The DNS formed in the collision may evolve along two distinct pathways. One is to form a compound nucleus, which subsequently de-excites by emitting light particles, γ-rays, or through fission (fusion-fission, FF). Alternatively, contrast to form a compound nucleus, the DNS may undergo quasi-fission, which can be regarded as MNT process. Within an extremely short time, extensive nucleon exchange takes place. Experimental and theoretical studies on the synthesis of heavy nuclei via MNT reactions date back to the 1970s [17−27]. To date, several laboratories, such as JINR, LBNL, Orsay, GSI and IMP have discovered numerous new isotopes through MNT reactions [28−32]. These theoretical and experimental results provide multi-faceted and multi-level tools for understanding and predicting reaction processes.

Research on MNT reactions primarily focuses on two major nuclear regions that remain insufficiently explored: first, the neutron-rich superheavy region, where theoretical predictions suggest new spherical shell closures near proton numbers Z = 114,120, or 126 and neutron number N = 184, forming the so-called "island of stability" [33−37]. Such nuclides cannot be synthesized via conventional fusion-evaporation reactions, and MNT reactions, particularly in very heavy systems, offer a feasible pathway for their production. Second, the neutron-rich region below lead, where nuclides are closely associated with the astrophysical r-process, is typically produced through fragmentation or fission reactions. Notably, both experiment and theory indicate that in this region, the cross sections of MNT reactions can even exceed those of fragmentation reactions, with the yield advantage becoming more pronounced as the neutron number of the product increases and the proton number decreases [38−43].

In this work, we report on the experiments in the ⁴⁸Ca− and ⁵⁴Cr−induced reactions with the ²³⁸U and ²⁴³Am targets, which were performed at SHANS2 (Spectrometer for Heavy Atoms and Nuclear Structure-2) at CAFE2 [44]. The recoils detected in the experiment were primarily attributed to QF reactions. In the offline analysis, recoil nuclei with atomic numbers in the range of $ 84 \leq {\rm{Z}} \leq 90 $ were identified via the position-time-energy correlation method, and their production yields and implantation energies were determined. By comparing the distributions and yields of MNT products, we probe their dependence on the reaction, thereby providing useful information for future studies of MNT reactions. Additionally, several fission events were observed that could not be attributed to the decay chains of SHNs. This study provides valuable insights for ongoing SHN synthesis experiments at SHANS2 and serves as a reference for corresponding theoretical studies.

These experiments (⁵⁴Cr +²⁴³ Am, ⁴⁸Ca +²⁴³ Am and ⁵⁴Cr +²³⁸ U) were conducted at the CAFE2 facility. Ion beams were generated by an electron cyclotron resonance ion source (ECRIS) and accelerated to energies near the respective Coulomb barriers by a superconducting linear accelerator.

For the ⁵⁴Cr +²⁴³ Am experiment, the beam energy was 7 MeV above the Coulomb barrier for the reaction system [45]. The beam intensity was maintained at approximately 0.60 pµA, resulting in a total integrated dose of $ 2.27\times 10^{18} $ particles. The ²⁴³Am material was electrochemically deposited onto 2-µm-thick titanium foil to fabricate four arc-shaped targets with a thickness of 48 µg/cm². These targets (the target backings face to beams) were uniformly distributed along the perimeter of a 10-cm-diameter rotating target wheel, which maintained a rotational speed of approximately 2900 rpm during irradiation.

In the ⁴⁸Ca +²⁴³ Am experiment, americium targets were prepared analogous to those described previously, with an average thickness of 556 µg/cm². The ⁴⁸Ca¹⁴⁺ ion beam was accelerated to 256 MeV (an energy of 6 MeV above the Coulomb barrier) with a typical intensity of 0.55 pµA [45].

For the ⁵⁴Cr +²³⁸ U experiment, we employed ten arc-shaped targets consisting of ²³⁸U (470 µg/cm²) electrochemically deposited on 2.2-µm-thick titanium backings. These targets, which the target backings face to beams, were mounted on a 20-cm-diameter rotating target wheel operating at 1500 rpm during irradiation. The ⁵⁴Cr¹⁷⁺ ion beam was accelerated to 310 MeV, which is 9 MeV above the Coulomb barrier of the system, with a typical intensity of 2.0 pµA [45]. The operational parameters of all experiments are compiled in Table 1.

The reaction products were recoiled from the target and transported into a separator filled with helium gas at a pressure of 100 Pa. This system has been demonstrated to achieve high transmission efficiency, considerable suppression of primary beam particles. After separation, recoils were implanted into a 300-µm-thick double-sided silicon strip detector (DSSD, BB17, Micron Semiconductor Ltd), which features 48 horizontal strips and 128 vertical strips, with an effective area of 48 × 128 mm². Six single-sided silicon strip detectors (SSDs) surround the DSSD, each having a thickness of 500 µm and an effective area of 120×63 mm², for the detection of α-particles and fission fragments escaping from the DSSD. The overall detection system achieves an efficiency of 86% for detecting α particles released in nuclear decay events. To differentiate between decay events and implanted events, two multi-wire proportional chambers (MWPCs) are placed at distances of 28 cm and 37 cm before the DSSD, respectively, and are filled with isobutane gas at a pressure of 300 Pa. Additionally, three square 300-µm-thick silicon detectors, each with an effective area of 50 × 50 mm², are installed behind the DSSD in parallel to reject particles that penetrate the DSSD. The signals from all detectors are amplified by preamplifiers and subsequently digitized by digitizer (V1724, CAEN S.p.A.), which operate at a sampling rate of 100 MHz. The energy resolution for α particles detected by the DSSD is approximately 30 keV (FWHM). For escaping α particles, the energy can be reconstructed by summing the energy deposits in both the DSSD and the surrounding SSDs, resulting in a reconstructed energy resolution of ≈80 keV (FWHM). Further details regarding the SHANS2 system and detection apparatus can be found in Ref. [44].

In these experiments, the α-decay chains of various nuclides were identified using the position-energy-time correlation method. Figure 1(a), (c), (e) display the DSSD energy spectra for all events recorded in the ⁴⁸Ca +²⁴³ Am, ⁵⁴Cr +²⁴³ Am and ⁵⁴Cr +²³⁸ U, respectively. The black solid line represents the spectrum of all events recorded by the DSSD. The red solid line corresponds to the spectrum obtained from the DSSD in anti-coincidence only with the MWPCs. The green solid line corresponds to the spectrum obtained from the DSSD in anti-coincidence only with the Veto detector. The blue solid line corresponds to the spectrum obtained from the DSSD under the simultaneous anti-coincidence requirement with both the MWPCs and the Veto detector. Figure 1(b), (d), (f) show the spectra of all events within the 6 − 20 MeV region from Fig. 1(a), (c), (e), respectively, revealing several distinct α-particle peaks. The energy range of 16 − 19 MeV primarily corresponds to decay events as pile-up signals. A pulse fitting technique was employed to process the digital α-decay signals of short-lived nuclei in the present experiments [46]. The minimum time separation achievable with our extraction method is approximately 120 ns.

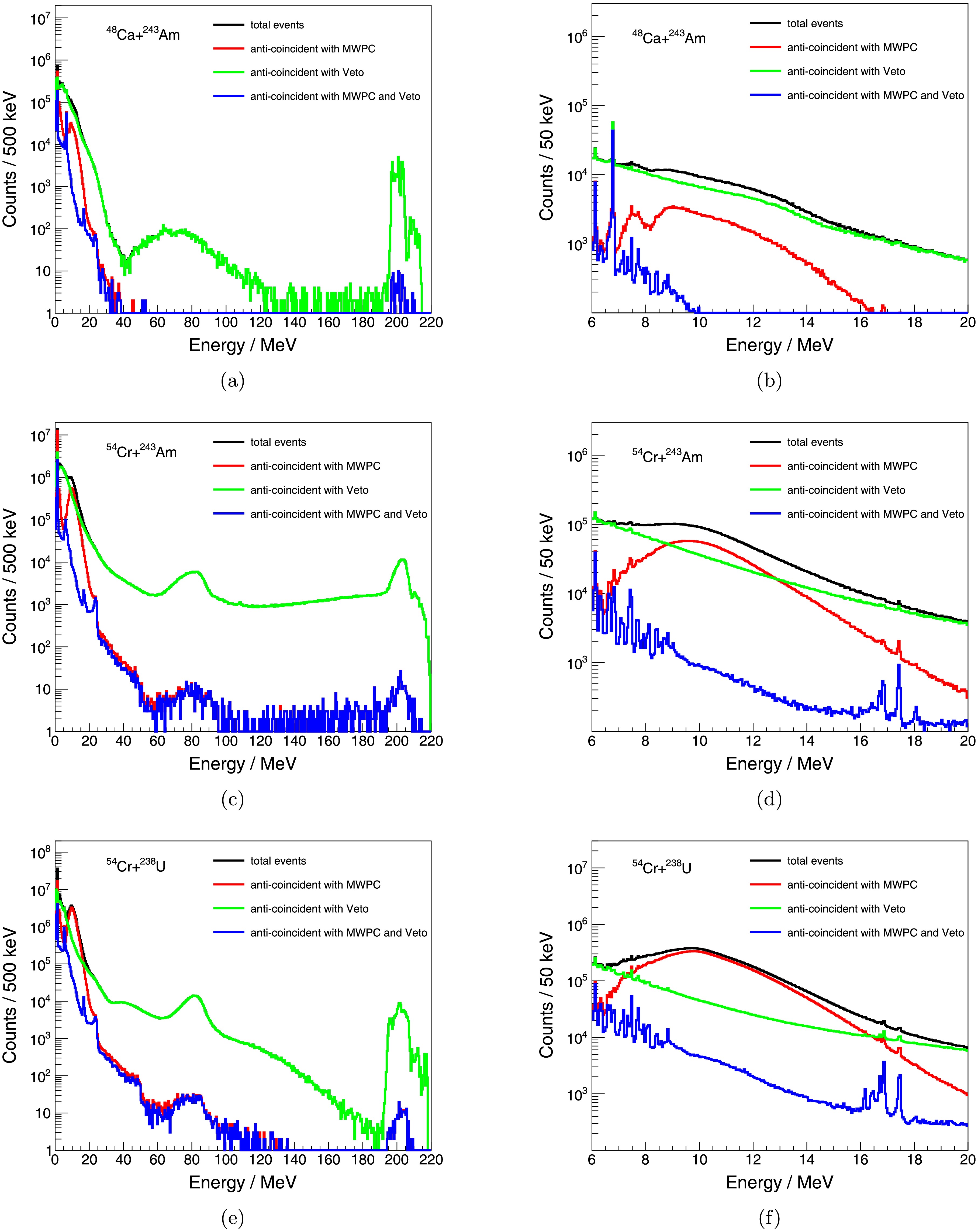

Figure 1.  (color online) DSSD energy spectra from the ⁴⁸Ca +²⁴³ Am (a), ⁵⁴Cr +²⁴³ Am (c) and ⁵⁴Cr +²³⁸ U (e) experiments. The black solid line represents the energy spectrum of all events recorded by the DSSD. The red solid line corresponds to the spectrum of events recorded by the DSSD in anti-coincidence only with the MWPCs. The green solid line corresponds to the spectrum of events recorded by the DSSD in anti-coincidence only with the Veto detector. The blue solid line corresponds to the spectrum of events recorded by the DSSD under the simultaneous anti-coincidence requirement with both the MWPCs and the Veto detector. (a), (c), (e) display the energy range from 0 to 220 MeV. (b), (d), (f) detail the 6 − 20 MeV energy range.

Furthermore, as shown by the green curve in the Fig. 1(a), (c), (e), spectral peaks are observed in the 60–100 MeV and 190–220 MeV regions. The former originates from the high-energy implantation of transfer reaction products, which is analyzed below, while the latter arises from scattered beam particles. The blue curve shows the spectrum of events recorded by the DSSD under the simultaneous anti-coincidence requirement with both the MWPCs and the Veto detector, which has a similar event distribution with the green curve within the energy range of 60−220 MeV. Due to not the 100% detection efficiency of MWPC, a small part of the implantation events were not registered.

To ensure accurate analysis of most nuclides, the correlation time window was determined by the half-lives of the nuclides and the average detector count rates measured in the experiments. The counting rates of the implantation events ($ E \gt 1 \; {\rm{ MeV}} $) at the whole DSSD were 8.4 Hz (⁴⁸Ca +²⁴³ Am), 29.8 Hz (⁵⁴Cr +²⁴³ Am), and 24.2 Hz (⁵⁴Cr +²³⁸ U) at the typical beam intensities listed in Table 1. The α-particle energy spectra correlated with recoil implantation (RI) for all three experiments, which were acquired with a search time window of $ 120 \;{\rm{ns}} \lt \Delta {\rm{t}}({\rm{RI}}-\alpha_{1}) \lt 100\; {\rm{s}} $, are presented in Fig. 2. By comparing the experimentally measured half-lives and α-particle energies with literature data, we identified nuclides exhibiting high statistics, which are labeled. It can be observed that the peaks with high statistics in the one-dimensional energy spectrum are all due to the overlap of multiple nuclides. These peaks correspond to (²¹⁹Rn, ²⁴⁶Cf), (²⁴²Cm), (²²⁰Ra, ²²¹Ac, ²¹¹Po, ²¹⁵Po), (²²³Ac, ²²¹Ra, ²²²Ra, ²²⁰Fr, ²¹⁹Rn), (²¹⁹Fr, ²²³Th), (²¹⁸Fr, ²¹⁹Ra, ²²¹Ac, ²¹⁴Po), (²¹²At, ²¹⁸Fr, ²²⁰Ac), (²¹⁶Rn, ²¹⁵At), (²¹⁸Rn, ²²⁴Th), (²²⁰Rn, ²²¹Fr), and (²¹⁷At, ²²²Ac). Among these, 242Cm and 246Cf, marked in red, were residues from previous ⁴⁸Ca +²⁰⁸ Pb experiment conducted with this apparatus. Due to their long half-lives, they persist on the DSSD and are not products of the present experiments. The one-dimensional energy spectra from the three experiments exhibit similarities, indicating consistent nuclide production.

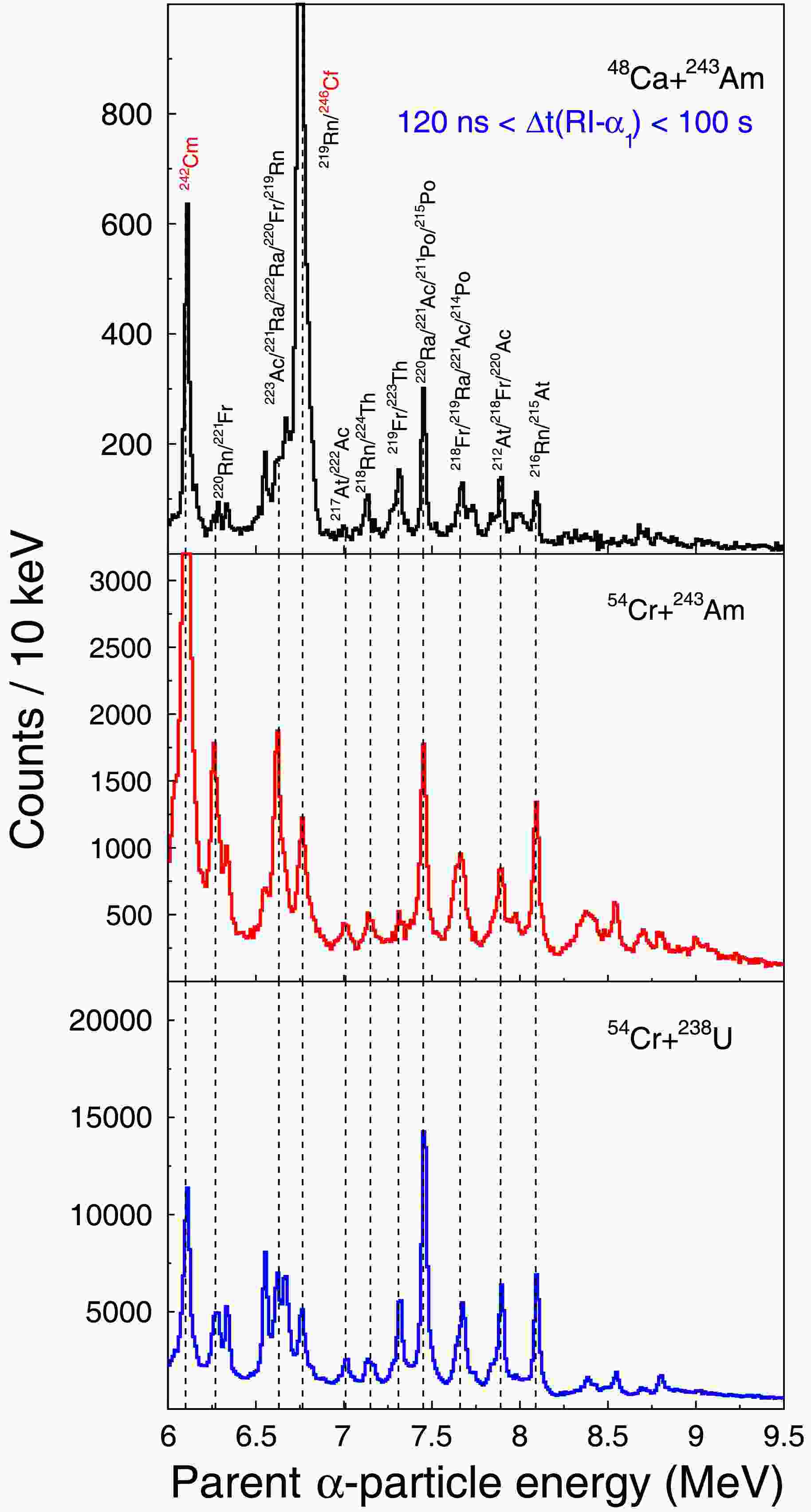

Figure 2.  (color online) Energy spectra of α particles correlated with their RI signals within a 120 ns - 100 s window in the ⁴⁸Ca +²⁴³ Am, ⁵⁴Cr +²⁴³ Am and ⁵⁴Cr +²³⁸ U experiments.

Nuclides produced in the experiments were further identified via RI-$ \alpha_{1} $-$ \alpha_{2} $ correlations. Figure 3 presents the two-dimensional energy spectrum of correlated parent and daughter α particles. The search time windows were $ 120\; {\rm{ns}} \lt \Delta {\rm{t}}({\rm{RI}} -\alpha_{1}) \lt 100\; {\rm{s}} $ and $ 120\; {\rm{ns}} \lt \Delta {\rm{t}}(\alpha_{1}-\alpha_{2}) \lt 1\; {\rm{s}} $. These conditions were determined based on the performance of our detection system and the half-lives of the nuclides identified within the region.

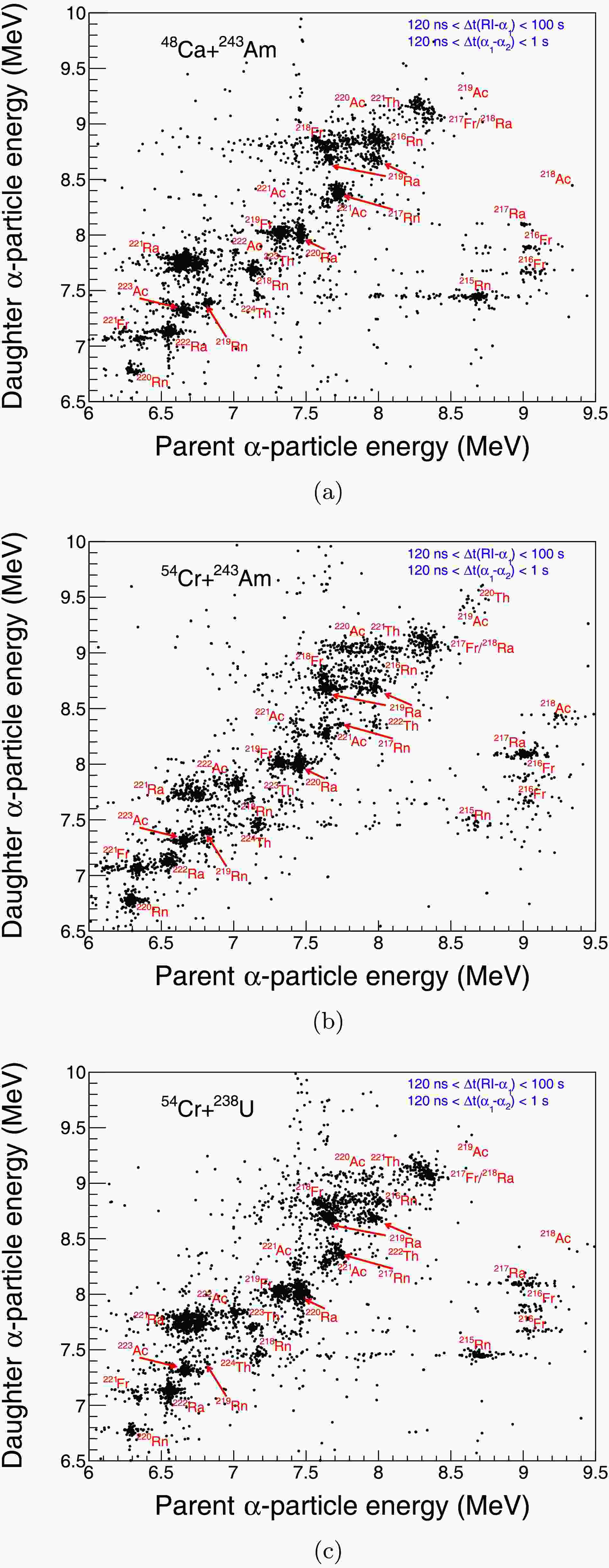

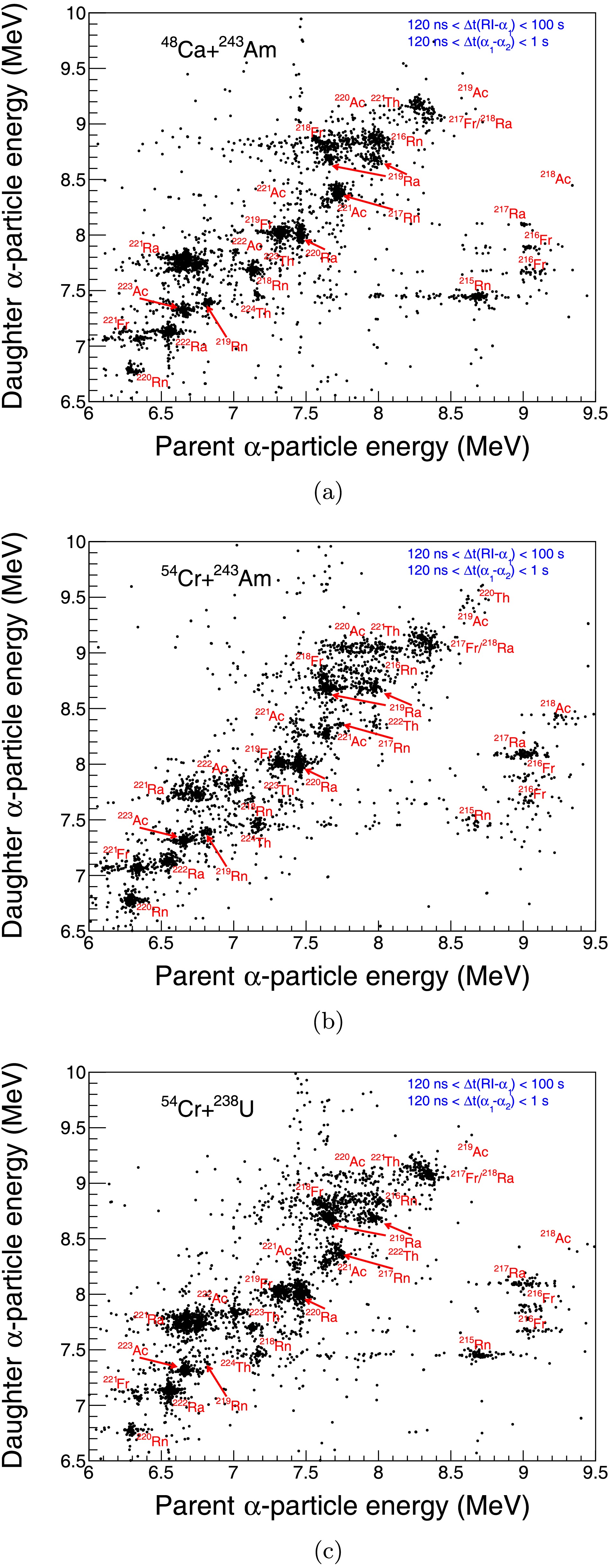

Figure 3.  (color online) Two-dimensional energy spectrum from the RI-$ \alpha_{1} $-$ \alpha_{2} $ correlation under the RI-$ \alpha_{1} $ and $ \alpha_{1} $-$ \alpha_{2} $ search time windows of 120 ns - 100 s and 120 ns - 1 s for the ⁴⁸Ca +²⁴³ Am (a), ⁵⁴Cr +²⁴³ Am (b) and ⁵⁴Cr +²³⁸ U (c) experiments, respectively. For the different reactions, the beam dose was maintained at a comparable level of approximately $ 5\times 10^{17} $ particles to achieve clear graphical representation of the data.

In Fig. 4, the $ E_{RI} $ distributions for ²¹⁹Ra, ²²⁰Ra, and ²²¹Ra from the ⁵⁴Cr +²⁴³ Am reaction are presented. The $ E_{RI} $ distributions are resolved into distinct high-energy (HEC) and low-energy (LEC) components. A combined analysis of the TASCA results [47] and previous similar analyses from SHANS2 [48] reveals that the produced nuclides exhibit a bimodal distribution in implantation energy (HEC/LEC), which appears to be linked to the reaction mechanism. Figure 5 shows the recoil energy loss $ \Delta E $ of implanted nuclei in the MWPCs as a function of $ E_{RI} $ for ²²⁰Ra in the ⁵⁴Cr +²⁴³ Am experiment. The energy loss of ²²⁰Ra in either MWPC1 or MWPC2 is distinctly divided into two components, corresponding to the LEC and HEC. The HEC also correlates with the peak in the 60 − 100 MeV energy region of the green curve in Fig. 1(a), (c), (e). The LEC spectrum exhibits a low-energy tail. Events below the 1 MeV are excluded. Figure 6 presents the time distributions of the RI-α correlations for ²²⁰Ra events belonging to the HEC and LEC. The time distributions for these two components show no significant difference and are consistent with the half-life value of ²²⁰Ra ($ T_{1/2}=18(2) \; {\rm{ms}} $ [49]).

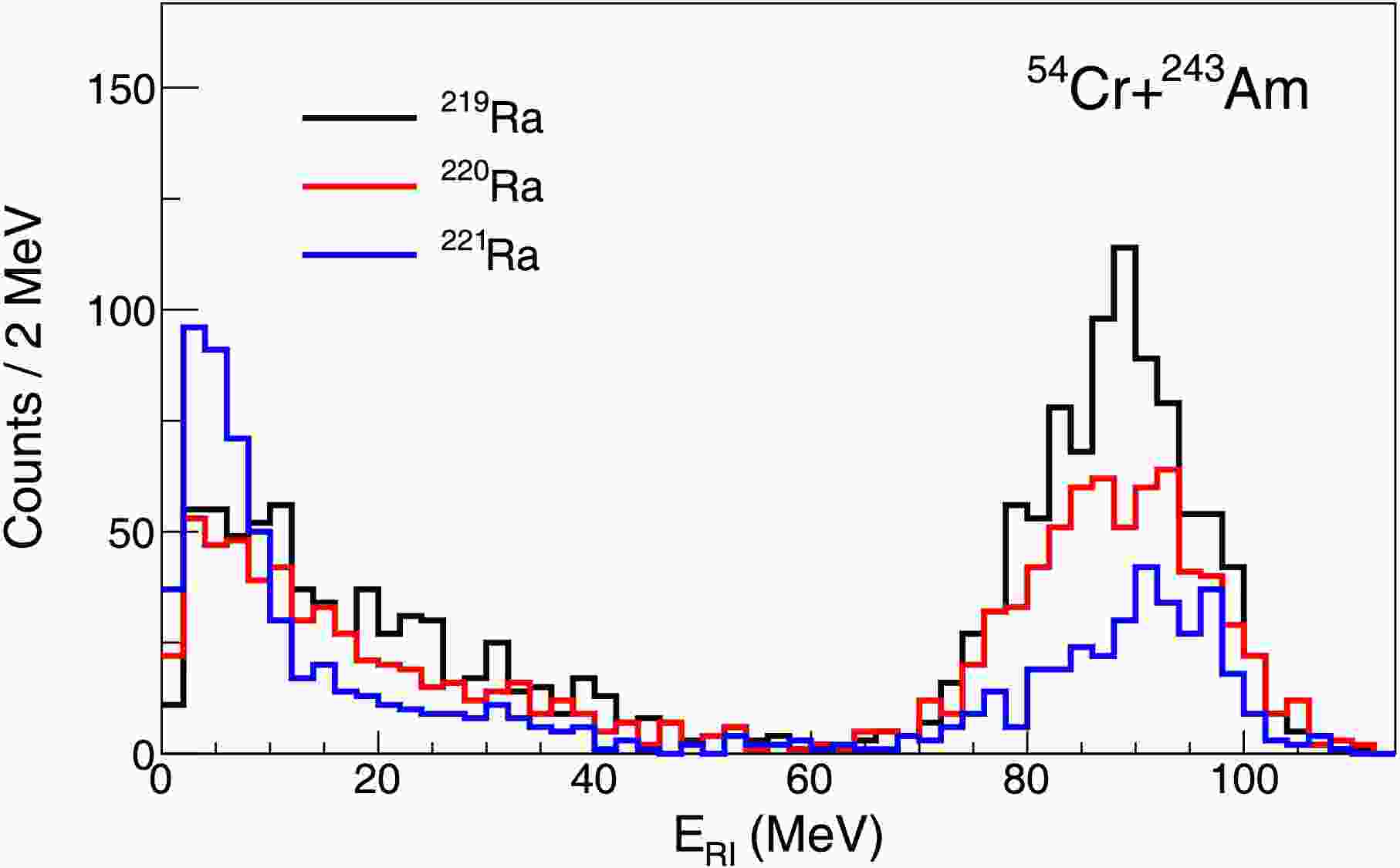

Figure 4.  (color online) Implantation energy distributions of Ra isotopes in the DSSD detectors for the ⁵⁴Cr +²⁴³ Am experiment.

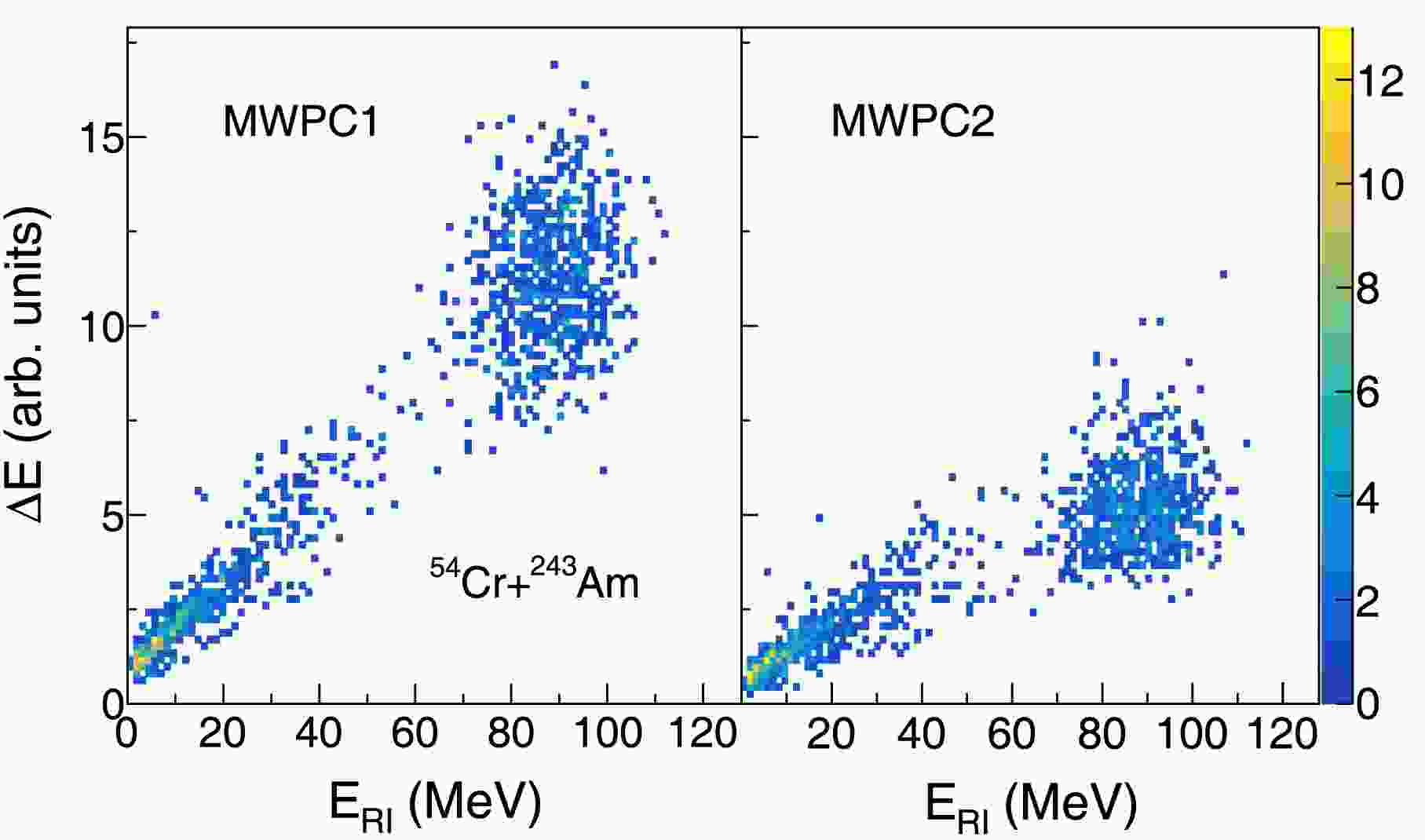

Figure 5.  (color online) Energy losses of ²²⁰Ra in MWPC1 and MWPC2 as a function of recoil energy in the ⁵⁴Cr +²⁴³ Am experiment.

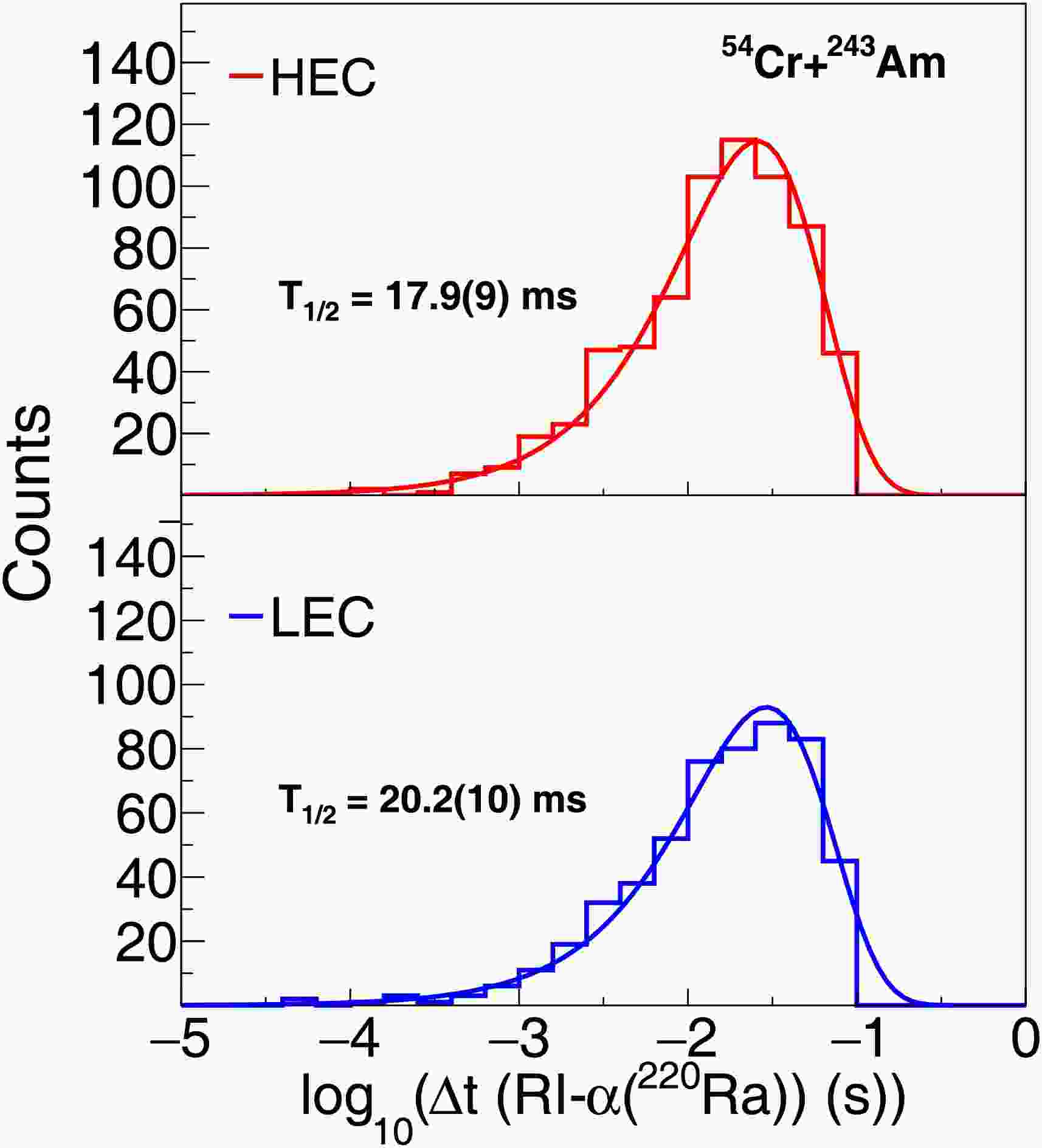

Figure 6.  (color online) Time distribution of ²²⁰Ra produced in the ⁵⁴Cr +²⁴³ Am reaction, with HEC and LEC recoils represented by solid red and solid blue lines, respectively.

Accurate determination of the yield of each nuclide in this nuclear region presents difficulties due to the significant overlap in α-decay energies and half-lives for some nuclides. For instance, it is impossible to distinguish between directly implanted ²¹⁸Ra (8383(4) keV, 25.91(14) µs [50]) and ²¹⁷Fr (8313(5) keV, 22(5) µs [51]) isotopes. Furthermore, some nuclides have extremely short lifetimes and decay almost instantly. To analyze the production yield of individual nuclides in these experiments, consistent identification criteria were applied across the three runs. Due to uncertainties in the transport efficiency ϵ of transfer reaction products for SHANS2, the cross section σ for each nuclide could not be determined. Consequently, the relative yield σϵ was presented in Table 2. The deduced α-particle energies and half-lives for all nuclides identified with RI-$ \alpha_1 $-$ \alpha_2 $ correlations in the three experiments was listed in Table 2, along with comparisons to literature reference values. For longer-lived nuclei (half-lives on the order of minutes), the measured half-lives in these experiments were generally do not match literature values, as noted in the table. This was due to the high probability of random correlation, which prevents an accurate determination of the temporal correlation between implanted nuclei and α-particles. Some nuclei exhibit multiple α-decay energies that are too close to be resolved. For nuclei that either do not exhibit RI-$ \alpha_1 $-$ \alpha_2 $ correlation or have excessively long half-lives, reliable relative yields cannot be determined. Consequently, Table 2 does not include all nuclides identified in these experiments.

The presence of fission-like events in the experiments were inferred from the analysis of the energy spectrum. The selection required a coincidence between the DSSD and SSD signals and a deposited energy in the DSSD of greater than 80 MeV. To suppress background events, a threshold of 2 MeV was applied to the SSD. The fission candidates identified in all three experiments are presented in Fig. 7. Four, eight, and two fission-like events were observed in the ⁴⁸Ca +²⁴³ Am, ⁵⁴Cr +²⁴³ Am and ⁵⁴Cr +²³⁸ U reactions, respectively. Detailed characteristics of these events were provided in Table 3. The lifetimes of these events are predominantly distributed in the millisecond range. All observed events can be tentatively attributed to the fission of implanted nuclei, likely short-lived fission isomers near the target (e.g., ^243mAm, ^242mAm, etc.), same as Refs. [31, 61].

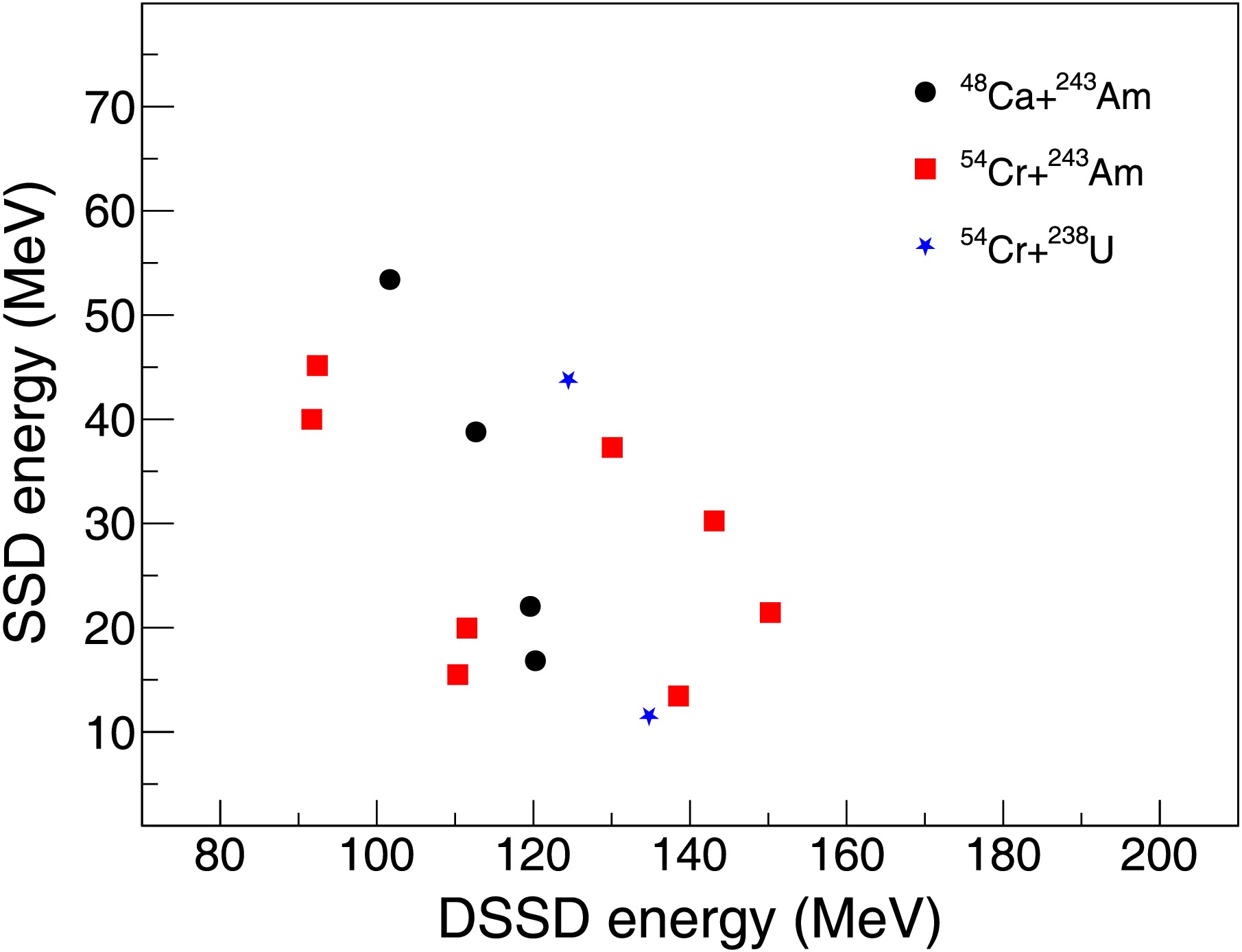

Figure 7.  (color online) The fission-like events in the ⁴⁸Ca +²⁴³ Am, ⁵⁴Cr +²⁴³ Am and ⁵⁴Cr +²³⁸ U experiments. Events were selected by requiring a coincident trigger between the DSSD and SSD, with the energy thresholds of 80 MeV in the DSSD and 2 MeV in the SSD, and an anti-coincident condition with the MWPCs and Vetos.

In these three reactions targeting the superheavy region, we identified 58 isotopes originating from MNT reactions using identical data analysis procedures, of which 52 were directly implanted into the DSSD. As shown in Fig. 8, all identified nuclides populate the region northeast of ²⁰⁸Pb (spanning N = 126 − 136 and A = 210 − 226), reflecting the influence of the doubly magic ²⁰⁸Pb core. The nuclide distributions from the three experiments exhibit no significant differences, showing almost complete overlap. This result is consistent with findings from the ⁵⁰Ti +²⁴⁹ Cf experiment performed at TASCA [47].

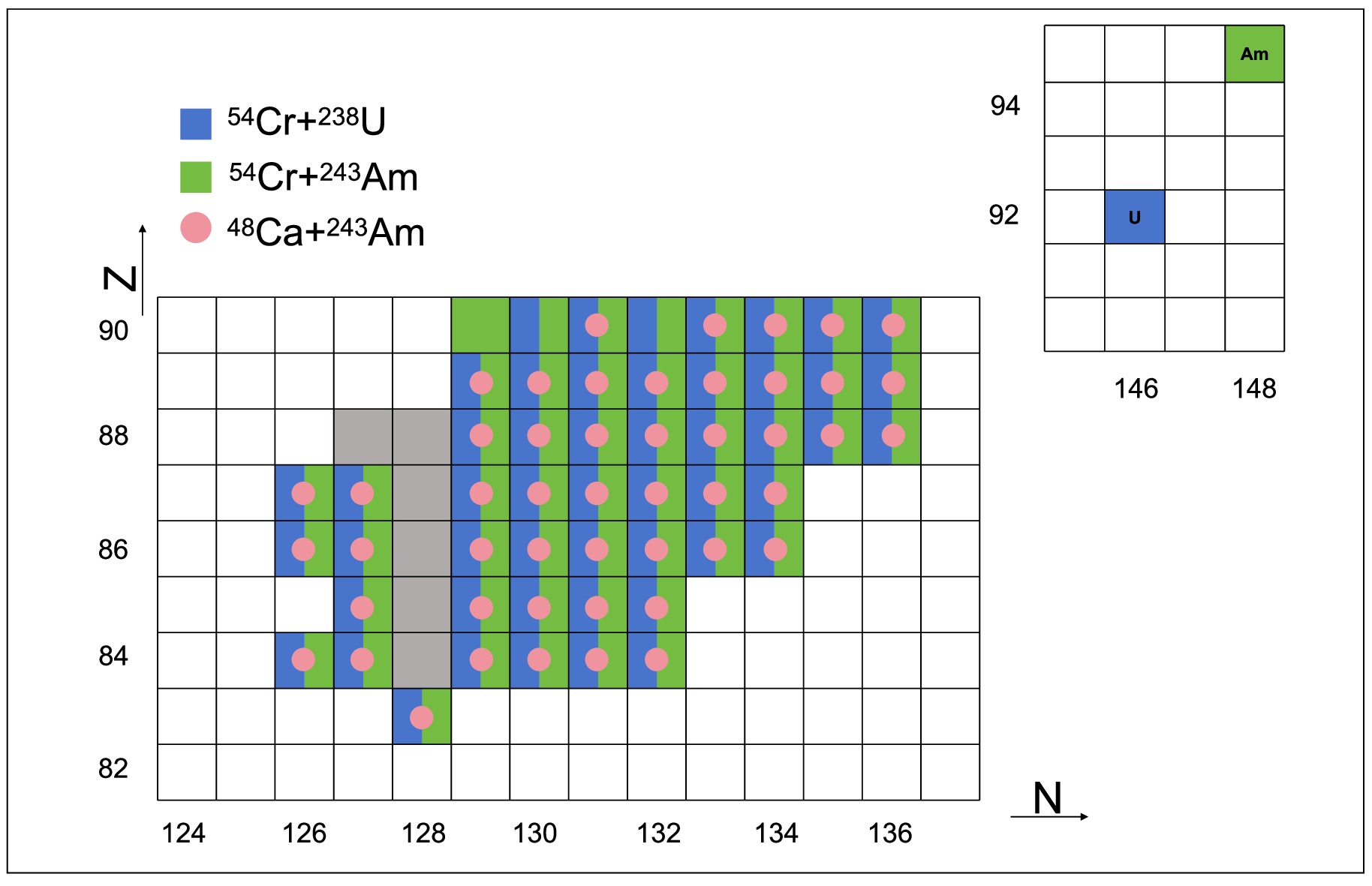

Figure 8.  (color online) The isotopic distributions identified using the energy-position-time correlation method were produced in the experiments involving ⁴⁸Ca +²⁴³ Am (pink dots), ⁵⁴Cr +²⁴³ Am (green), and ⁵⁴Cr +²³⁸ U (blue). Gray shading denotes nuclides originating from the decay of implanted nuclei, rather than from direct implantation into the DSSD.

The relative yields (σϵ) for Th, Ac, Ra, Fr, and Rn in each experiment were displayed in Fig. 9. The σϵ values for the various isotopes exhibit a consistent correlation with mass number across the three experiments, with Ra, Fr, and Rn isotopes exhibiting higher relative yields. For instance, a general decrease in relative yield is observed with an increasing number of transferred neutrons (from the target region toward ²⁰⁸Pb), consistent with the findings reported in Ref. [30]. The maxima of the isotopic distributions for MNT products are found at neutron-to-proton ratios N/Z close to that of the entrance-channel system [30]. The $ N/Z $ ratios for the reactions shown in Fig. 9 are 1.530, 1.517, and 1.496, respectively. For Th isotopes, the relative yield maxima occur approximately at A = 227,226, and 224. Isotopes with mass numbers up to 224 were observed in all reactions, leading to an increase in relative yields with increasing A, although their relative yields remain significantly lower than those of other nuclides. For Rn isotopes, the relative yield maxima are located at approximately A = 217,216, and 214. Consequently, Rn isotopes exhibit flatter relative yield distributions in the ⁴⁸Ca +²⁴³ Am and ⁵⁴Cr +²³⁸ U reactions. For isotopes of Fr–Ac elements, the relative yield dependence is intermediate between those of Rn and Th. When comparing these different reactions, it is found that the relative yields of the nuclides generally show a monotonic increasing trend through the ⁴⁸Ca +²⁴³ Am, ⁵⁴Cr +²³⁸ U, and ⁵⁴Cr +²⁴³ Am reactions.

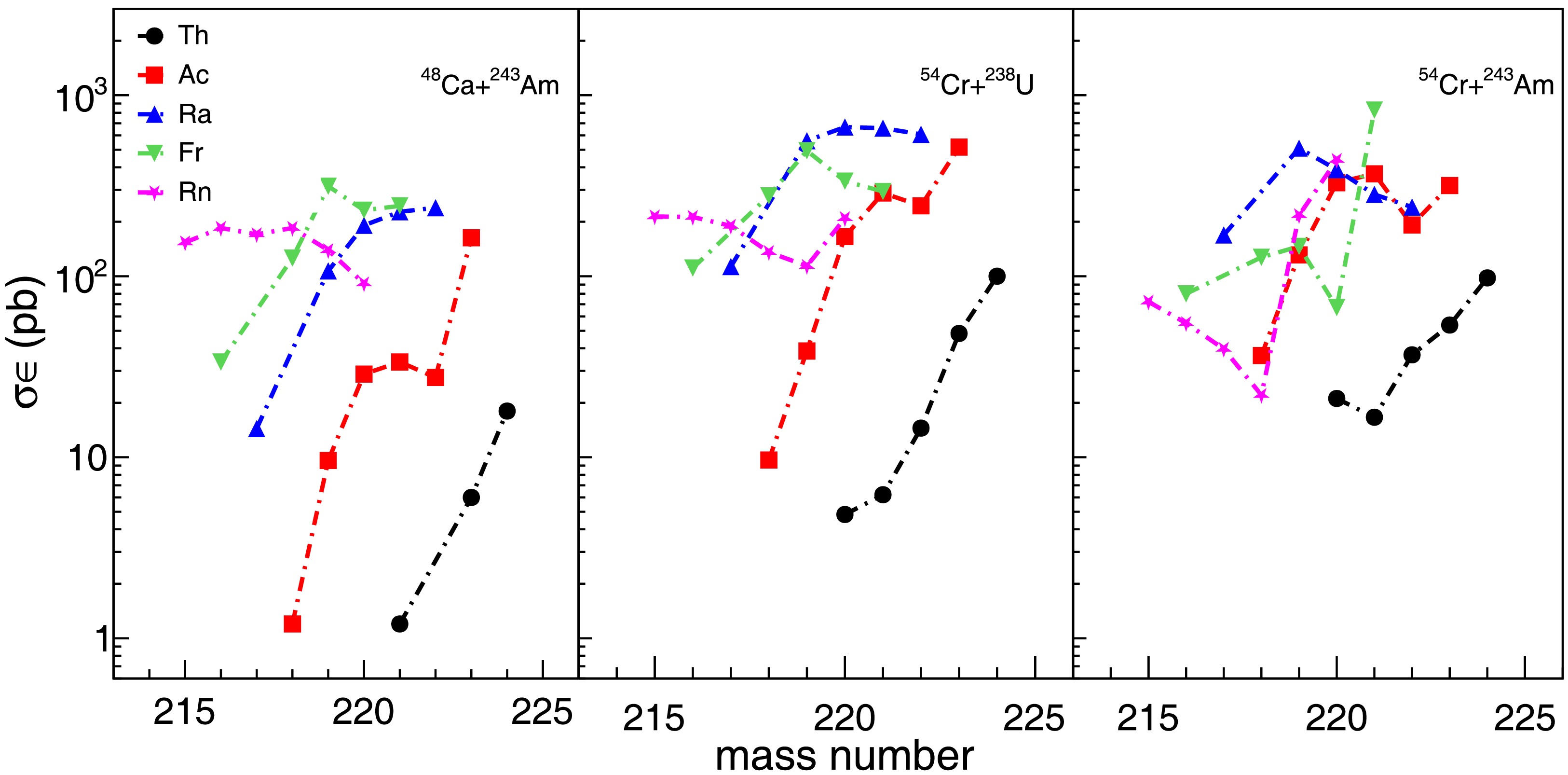

Figure 9.  (color online) The relative yields (σϵ) of implanted Th, Ac, Ra, Fr, and Ra isotopes as a function of mass number (A), which were produced in the ⁴⁸Ca +²⁴³ Am, ⁵⁴Cr +²⁴³ Am, and ⁵⁴Cr +²³⁸ U experiments. Here, σ represents the cross section and ϵ denotes the efficiency.

In these experiments, the MNT cross sections are notably higher than those of fusion-evaporation, suggesting that the projectile-target interaction lasts sufficiently long to form a DNS, which subsequently fractures within an extremely short time. The observed distribution of all MNT nuclides migrating from the target region toward ²⁰⁸Pb indicates that the DNS decays into two splits with considerable mass asymmetry. The heavier fragment corresponds to the detected nuclides, while the lighter one remains unidentified. We suggest that the identified isotopes may originate from QF processes, due to the influence of the doubly magic ²⁰⁸Pb [47, 48]. The fragmentation process involves the emission of fragments at random angles relative to the beam direction. Light fragments emitted along the beam direction result in heavier fragments exhibiting LEC characteristics, while emission opposite to the beam direction leads to the HEC effect [22, 47, 62].

It is conceivable that quasi-elastic scattering products may be produced in these reactions. However, these products, typically remaining in the vicinity of the target and characterized by either long half-lives or decay via β-emission, cannot be identified by our detection system. Furthermore, we cannot distinguish between quasi-fission and deep inelastic scattering processes with the current settings.

The study of ⁴⁸Ca +²⁴³ Am, ⁵⁴Cr +²⁴³ Am and ⁵⁴Cr +²³⁸ U reactions was carried out in CAFE2 using SHANS2. Analysis reveals that, despite variations in individual nuclide yields across different reactions, their dependence on the number of transferred nucleons exhibits a consistent trend, indicating distinct systematic patterns of product distributions in these reactions. Furthermore, we suggest that the identified isotopes may originate from QF processes. However, experimental data on this reaction mechanism remain scarce. These findings impose significant constraints on theoretical models describing the dynamics of QF in heavy-ion collisions, thereby helping to clarify unresolved aspects of different reaction mechanisms and providing new perspectives for understanding their underlying features.

The authors would like to express their thanks to the ion-source group and the accelerator crew of CAFE2 for providing the stable ⁵⁴Cr and ⁴⁸Ca beams.
