Transfer reaction products in the ⁴⁰Ar + ²³²Th reaction

Atomic nuclei, composed of protons and neutrons, are many-body quantum systems. When atomic nuclei deviate from the stability line and approach the drip-line region, a range of phenomena distinct from stable nuclei [1] was exhibited, e.g., halo and cluster structures [2], soft excitation modes [3], and shape coexistence [4]. Therefore, studying the exotic properties of unstable isotopes is of significant importance for exploring the limits of atomic nuclei in terms of their proton number and mass, as well as for testing and refining existing nuclear theories. Nuclear reactions are the only method to produce unstable atomic nuclei. For superheavy elements with Z > 103, their reaction cross sections can reach the picobarn (pb) range, or even lower [5]. In this case, optimized high sensitivity of experimental technique is required. In 2021, the Institute of Modern Physics, Chinese Academy of Sciences (IMP-CAS) has completed the construction of the China Accelerator Facility for Superheavy Elements (CAFE2). The facility is capable of producing high intensity heavy-ion beams [6, 7], which enables the experimental study of heavy and superheavy nuclides with extremely low cross sections.

However, theoretical model calculations indicate that at energies close to the Coulomb barrier, the multi-nucleon transfer reaction [8] are superior to other reactions for the production of certain heavy and superheavy isotopes [9, 10]. Since the 1970s, several experimental studies have been conducted on the multi-nucleon transfer reactions in heavy systems at Coulomb barrier energies, aiming to produce heavy nuclei [11−14]. Recently, the $ ^{48} {\rm{Ca}}$+$ ^{248} {\rm{Cm}}$ [15, 16] and $ ^{50} {\rm{Ti}}$+$ ^{249} {\rm{Cf}}$ [17] reactions were investigated using the velocity filter SHIP and the gas-filled recoil separator TASCA at GSI Darmstadt, respectively. The resulting transfer products were extensively studied. Nevertheless, the exceedingly low cross sections of superheavy isotopes pose substantial challenges. Efficient separation and detection techniques, similar to the single-atom identification methods employed in fusion-evaporation reactions of superheavy elements, must be developed to overcome these challenges.

In Ref. [18], the products of the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$ reaction were detected using a telescope composed of two silicon surface-barrier detectors. The energy spectrum, angular distribution, and cross sections of products with atomic number $ 5 \leq Z \leq 20 $ were measured. In this work, we report the study of the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$ reaction performed at the gas-filled recoil separator SHANS2 at CAFE2 [19, 20]. During the offline analysis, recoil nuclei with the atomic number $ 84 \leq Z \leq 90 $ were identified, and their relative cross sections and implanted energies were extracted using the method of position-time-energy correlations (recoil implantations (RI) - α₁ - α₂). Unfortunately, no decay events from complete fusion-reaction products were observed in the experiment. Based on the mass distribution of the recoiling products, the possibility of their formation via fusion-fission reactions was excluded. Thus, the detected recoils in the experiment mainly originated from quasi-fission [21] or multi-nucleon transfer reactions, which are also referred to as incomplete fusion products. The data obtained in this study provide new information for SHANS2 and may serve as a reference for the synthesis of the new superheavy nuclides.

The experiment was performed at the SHANS2, which is located at the CAFE2 at the Institute of Modern Physics in Lanzhou, China. The continuous $ ^{40} {\rm{Ar}} ^{12+} $ beam was provided by the Electron Cyclotron Resonance Ion Source (ECRIS) and was accelerated in the superconducting linear accelerator. The beam particles were accelerated at an energy of 205 MeV, with a beam dose of 1.7 × $10 ^{18} $ and an effective irradiation time of 81 hours. The beam intensity was approximately 1 pµA.

Four arc-shaped $ ^{232} {\rm{Th}}$ targets were prepared by electro-deposition onto a 2-µm-thick titanium foil, resulting in an average target thickness of 613 µg/cm². These segments were evenly mounted on the edge of a rotating wheel with a diameter of 48 mm, which rotated at approximately 3000 revolutions per minute during the irradiation process.

In the experiment, SHANS2 was filled with 1 mbar helium gas as the working gas and the magnetic rigidity was set to 2.208 T·m. After the separation, the recoiled products were firstly passed through two multi-wire proportional counters (MWPCs) and subsequently implanted into a double-sided silicon detector (DSSD), which had a thickness of 300 µm and a sensitive area of 128 × 48 mm². The silicon strip width of the DSSD was 1 mm, forming a total of 6144 pixels. MWPCs were primarily utilized to distinguish between implanted and decay events on the DSSD. The working gas used was isobutane, and the optimal working pressure was approximately 300 Pa. As a stopping detector, the DSSD was primarily used to measure implanted signals, α-decay events and fission event signals. Six side silicon detectors (SSDs), with a thickness of 500 µm and a sensitive area of 120 × 63 mm², were arranged in a tunnel shape on the front side of the DSSD to detect α-particles and fission fragments that escaped from the DSSD. The overall detection efficiency of the detection system for α-particles emitted from implanted nuclei was measured to be 86(8)%, with approximately 55% contributed by DSSD. All silicon detectors were manufactured by Micron Semiconductor Ltd. Additionally, in order to register light punching-through particles, three silicon detectors were placed in parallel directly behind the DSSD, each having 300 µm thick, with a sensitive area of 50 × 50 mm². The alcohol cooling system was used to cool the silicon-box detector to approximately -25 °C in order to maintain the energy resolution of the silicon detector. For 5-9 MeV full-energy α-decay events, the energy resolution of the DSSD placed in the focal plane was approximately 30 keV (FWHM), while that for reconstructed α-decay events was 80 keV (FWHM). All signals were shaped by the preamplifier and acquired by a 14-bit self-triggering analog-to-digital converter operating at a sampling rate of 100 MHz.Comprehensive details regarding SHANS2 and the detection system are provided in Ref. [19].

In this experiment, an energy-position-time correlation method was employed for identifying isotopes through the analysis of the known α-decay energies and half-lives of the nuclei. The energy spectrum of α-like events recorded by the DSSD after the anti-coincidence of the MWPCs is presented in Fig. 1(a). All significant peaks with high statistics were identified through their α-particle energies and half-lives. Fig. 1(b) presented the energy spectrum of α-particles associated with the RI - α₁ correlation, with an energy range of $ E_{RI} $ = 5-9.5 MeV and a search time window of ∆t (RI - α₁) < 100 s. For products with relatively high yields, the identification was further confirmed by comparing the experimental values of α-energies and half-life with those reported in the literature.

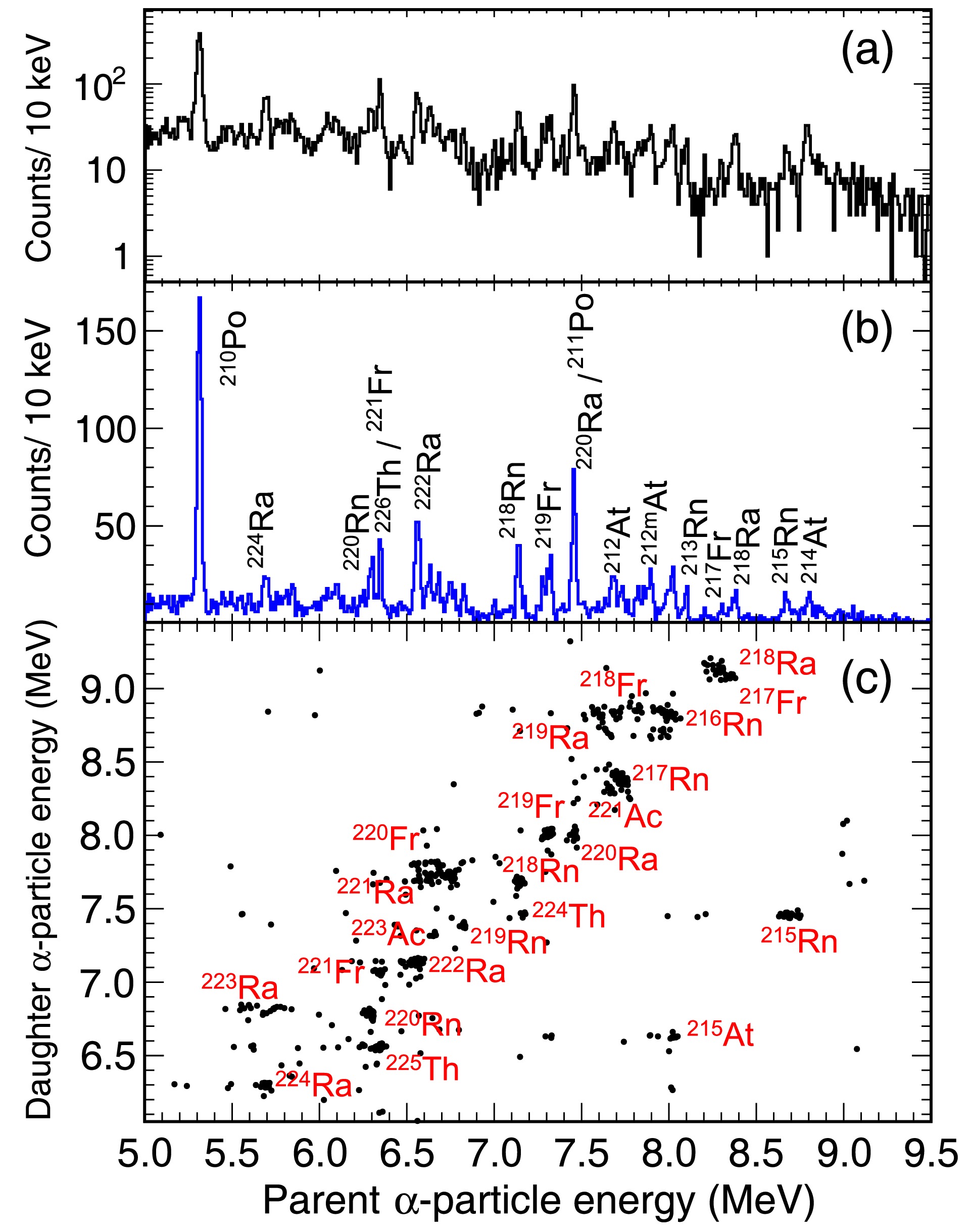

Figure 1.  (Color online) (a) α-decay spectrum of all particles detected in the 5 - 9.5 MeV range for the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$ reaction in the experiment. (b) α-decay spectrum of the parent nucleus under the RI - α₁ correlation, with a search time ∆$ t_{1} $ < 100 s. (c) Two-dimensional spectrum of parent and daughter α-particle under the RI-α₁-α₂ correlation, with search times ∆$ t_{1} $ < 100 s and ∆$ t_{2} $ < 10 s.

RI - α₁ - α₂ correlation was performed to identify isotopes with low yields. Fig. 1(c) displayed the two-dimensional spectrum of parent and daughter α-particles under the RI - α₁ - α₂ correlation, with search time windows of ∆t (RI - α₁) < 100 s and ∆t (α₁ - α₂) < 10 s. A total of 44 isotopes, with mass numbers ranging from 210 ≤ A ≤ 226 and atomic numbers between 84 ≤ Z ≤ 90, were identified. Among these isotopes, 36 of them were directly implanted.

Fig. 2(a) and Fig. 2(b) show the implanted energy spectrum of $ ^{211} {\rm{Po}}$, $ ^{212} {\rm{At}}$, and $ ^{212m} {\rm{At}}$, along with those of $ ^{216} {\rm{Rn}}$, $ ^{219} {\rm{Fr}}$, and $ ^{222} {\rm{Ra}}$. It is noteworthy that, compared to the energy distribution of implanted nuclei reported in Ref. [17], the energy distribution of implanted nuclei in this experiment is primarily concentrated in the region where 1 MeV < $ E_{\text{RI}} $ < 60 MeV. Only three nuclides, $ ^{211} {\rm{Po}}$, $ ^{212} {\rm{At}}$, and $ ^{212m} {\rm{At}}$, demonstrate both high (HEC, 30 MeV < $ E_{\text{RI}} $ < 60 MeV) and low (LEC,1 MeV < $ E_{\text{RI}} $ < 30 MeV) energy components, while the other products only display LEC. In Ref. [17], all the implantations show the HEC and LEC for the recoil energy distributions.

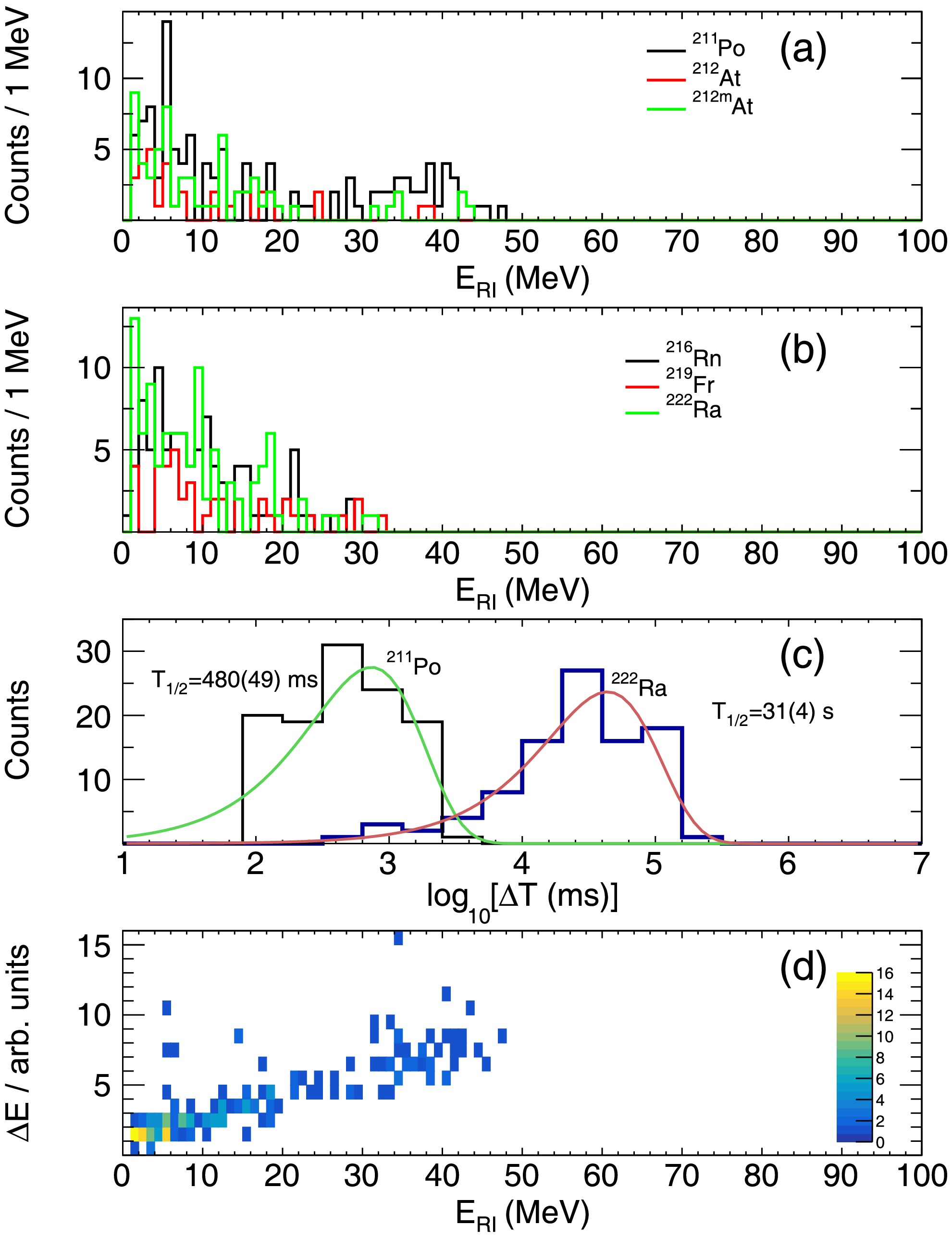

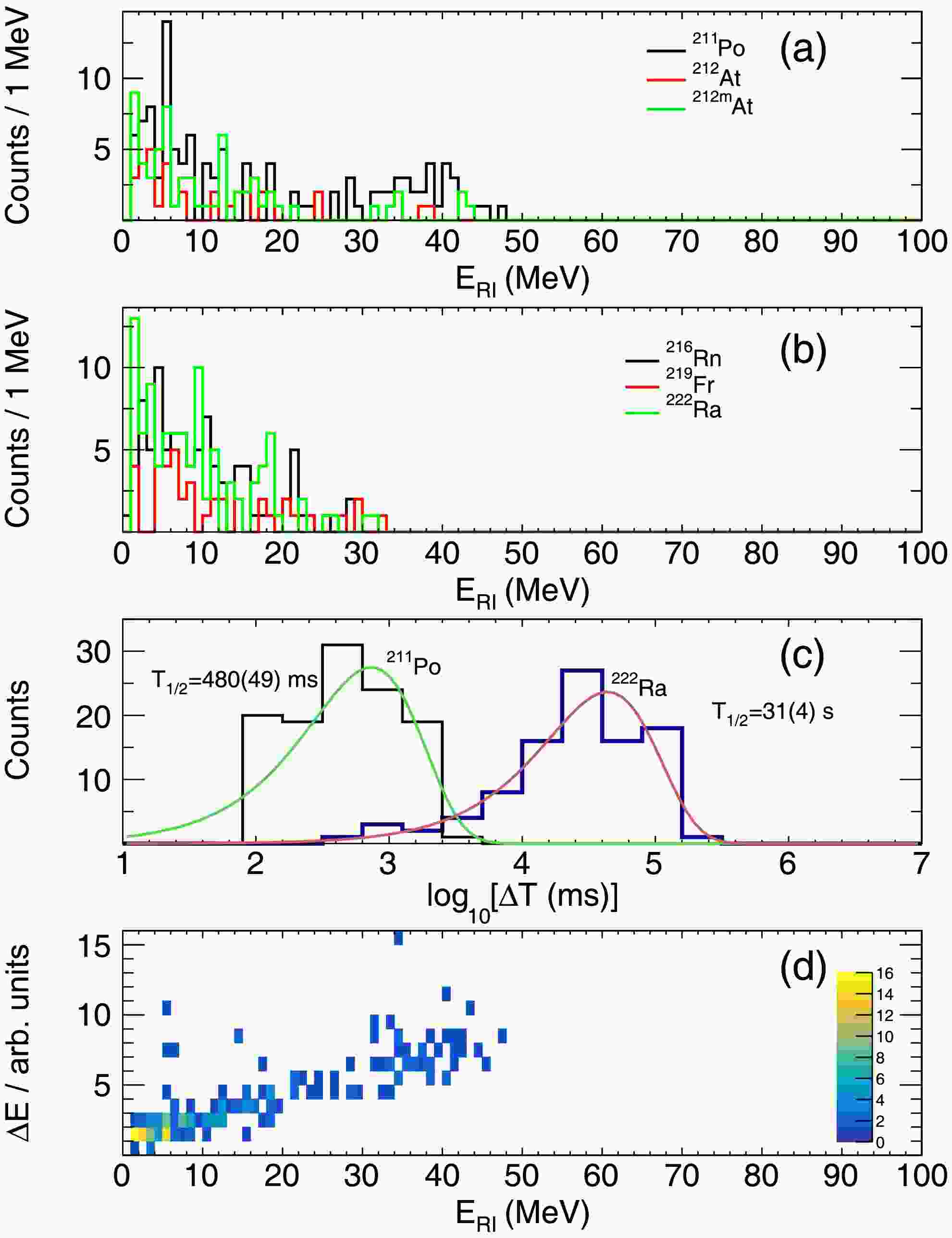

Figure 2.  (Color online) (a) Energy distributions of the implanted $ ^{211} {\rm{Po}}$, $ ^{212} {\rm{At}}$ and $ ^{212m} {\rm{At}}$ in the silicon box. (b) Energy distributions of the implanted $ ^{216} {\rm{Rn}}$, $ ^{219} {\rm{Fr}}$ and $ ^{222} {\rm{Ra}}$ in the silicon box. (c) The half-lives of $ ^{222} {\rm{Ra}}$ and $ ^{211} {\rm{Po}}$ were measured in the experiment. (d) The energy losses of $ ^{211} {\rm{Po}}$, $ ^{212} {\rm{At}}$, and $ ^{212m} {\rm{At}}$ in the MWPCs vs the recoil energy.

Fig. 2(c) presents the time distribution of implantation events for the LEC and HEC of $ ^{211} {\rm{Po}}$, as well as the LEC implantation events for $ ^{222} {\rm{Ra}}$. The deduced half-lives of $ ^{211} {\rm{Po}}$ (T_1/2 = 480(49) ms) and $ ^{222} {\rm{Ra}}$ (T_1/2 = 31(4) s) were consistent with the values reported in the literature [22, 32], further confirming the reliability of the experiment. Fig. 2(d) illustrates the relationship between the energy losses of $ ^{211} {\rm{Po}}$, $ ^{212} {\rm{At}}$, and $ ^{212m} {\rm{At}}$ in the MWPCs and their implantation energies. Consistent with the observations reported in Ref. [17], significant differences in the energy losses of HEC and LEC in the MWPCs are observed, further supporting the conclusion that the implantation energies consist of two distinct components.

Due to the unknown transmission efficiency ε of transfer reaction products through SHANS2, the absolute reaction cross sections of the identified nuclides cannot be determined. To obtain an approximate value, the product of the transmission efficiency and the cross sections, $ \sigma\varepsilon $, was used as the relative reaction cross sections for the transfer reaction products. In the calculation, the detection efficiency for full-energy α particles in the DSSD was 55%. The relative cross sections for transfer reaction products with half-lives on the order of seconds or less are presented in the Table 1. In Fig. 3, the $ \sigma\varepsilon $ of the three isotopic chains, Rn, Fr, and Ra, are compared, and the yields of these isotopes do not vary significantly as the number of neutrons increases.

Isotopes	This work				Literature data
	Eα/keV	T1/2	σε/pb		Eα/keV	T1/2	Ref.
$ ^{211} {\rm{Po}}$	7456(13)	0.48(5) s	79(22)		7450.3(5)	0.16(3) s	[22]
$ ^{212} {\rm{At}}$	7679(10)	0.43(10) s	28(9)		7669.3(2)	0.314(2) s	[23]
$ ^{212m} {\rm{At}}$	7829(10),7879(12)	0.12(2) s	45(14)		7826.7(2),7888.0(2)	0.119(3) s	[23]
$ ^{215} {\rm{At}}$	8025(13)	0.07(2) ms	15(6)		8026(4)	0.10(2) ms	[24]
$ ^{213} {\rm{Rn}}$	8094(10)	17.5(30) ms	29(9)		8089(3)	19.5(1) ms	[25]
$ ^{215} {\rm{Rn}}$	8673(11)	2.6(4)µs	37(11)		8674(8)	2.30(10) µs	[24]
$ ^{216} {\rm{Rn}}$	8022(13)	44.4(50)µs	63(18)		8050(10)	45(5) µs	[26]
$ ^{217} {\rm{Rn}}$	7728(12)	0.5(1) ms	44(15)		7738(3)	0.59(6) ms	[27]
$ ^{218} {\rm{Rn}}$	7140(10)	28(6) ms	50(17)		7129(2)	33.75(15) ms	[28]
$ ^{219} {\rm{Rn}}$	6824(11)	6.9(15) s	21(8)		6819.1(3)	3.96(1) s	[29]
$ ^{220} {\rm{Rn}}$	6293(10)	56.5(110) s	68(22)		6288.1(1)	55.6(1) s	[30]
$ ^{216} {\rm{Fr}}$	9034(22)	2.0(6) µs	8(4)		9004(5)	0.70(2) µs	[26]
$ ^{218} {\rm{Fr}}$	7606(15),7690(12),7819(11)	29.5(60) ms	48(16)		7616(4),7681(4),7809(5)	21.9(5) ms	[28]
$ ^{219} {\rm{Fr}}$	7320(10)	28(4) ms	55(18)		7312(2)	20(2) ms	[29]
$ ^{220} {\rm{Fr}}$	6683(11)	31.3(50) s	39(14)		6677(4)	27.4(3) s	[30]
$ ^{217} {\rm{Ra}}$	9006(36)	2.3(9) µs	3(2)		8992(8)	1.6(2) µs	[27]
$ ^{219} {\rm{Ra}}$	7651(21),7940(20)	8.5(15) ms	21(8)		7678(3),7988(3)	10(3) ms	[29]
$ ^{220} {\rm{Ra}}$	7465(11)	18.2(39) ms	22(8)		7453(7)	18(2) ms	[30]
$ ^{221} {\rm{Ra}}$	6752(12)	23(4) s	83(27)		6754(5)	28(2) s	[31]
$ ^{222} {\rm{Ra}}$	6561(10)	31(4) s	124(39)		6558(5)	33.6(4) s	[32]
$ ^{224} {\rm{Th}}$	7170(17)	0.55(17) s	8(4)		7170(10)	1.05(2) s	[30]

Table 1.  α-decay properties of the transfer reaction products produced in the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$ reaction. The second and third columns list the α-particle energies and half-lives of these isotopes measured in this work. The fourth column presents the relative cross sections for the corresponding isotopes. The fifth and sixth columns provide the corresponding literature values.

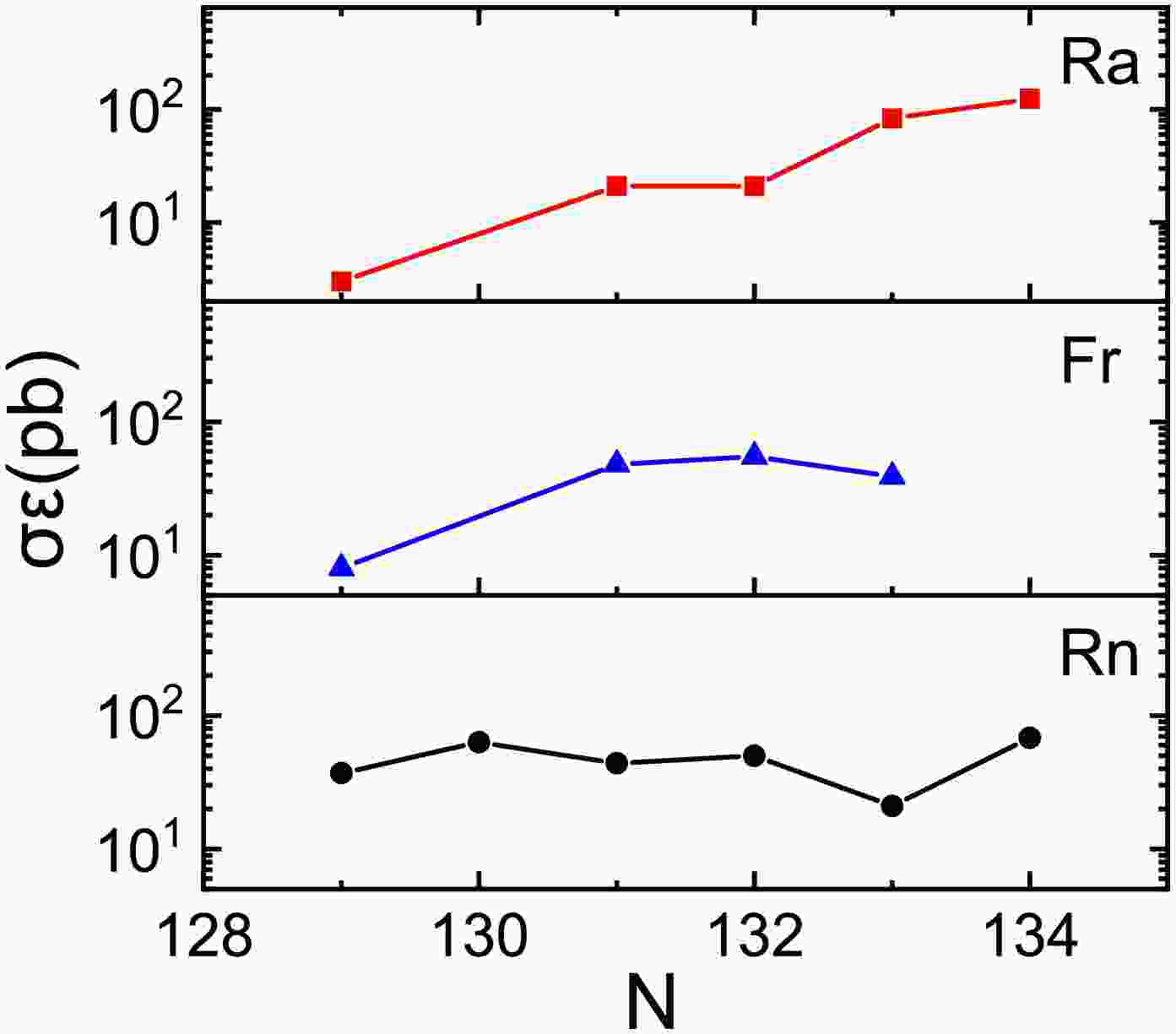

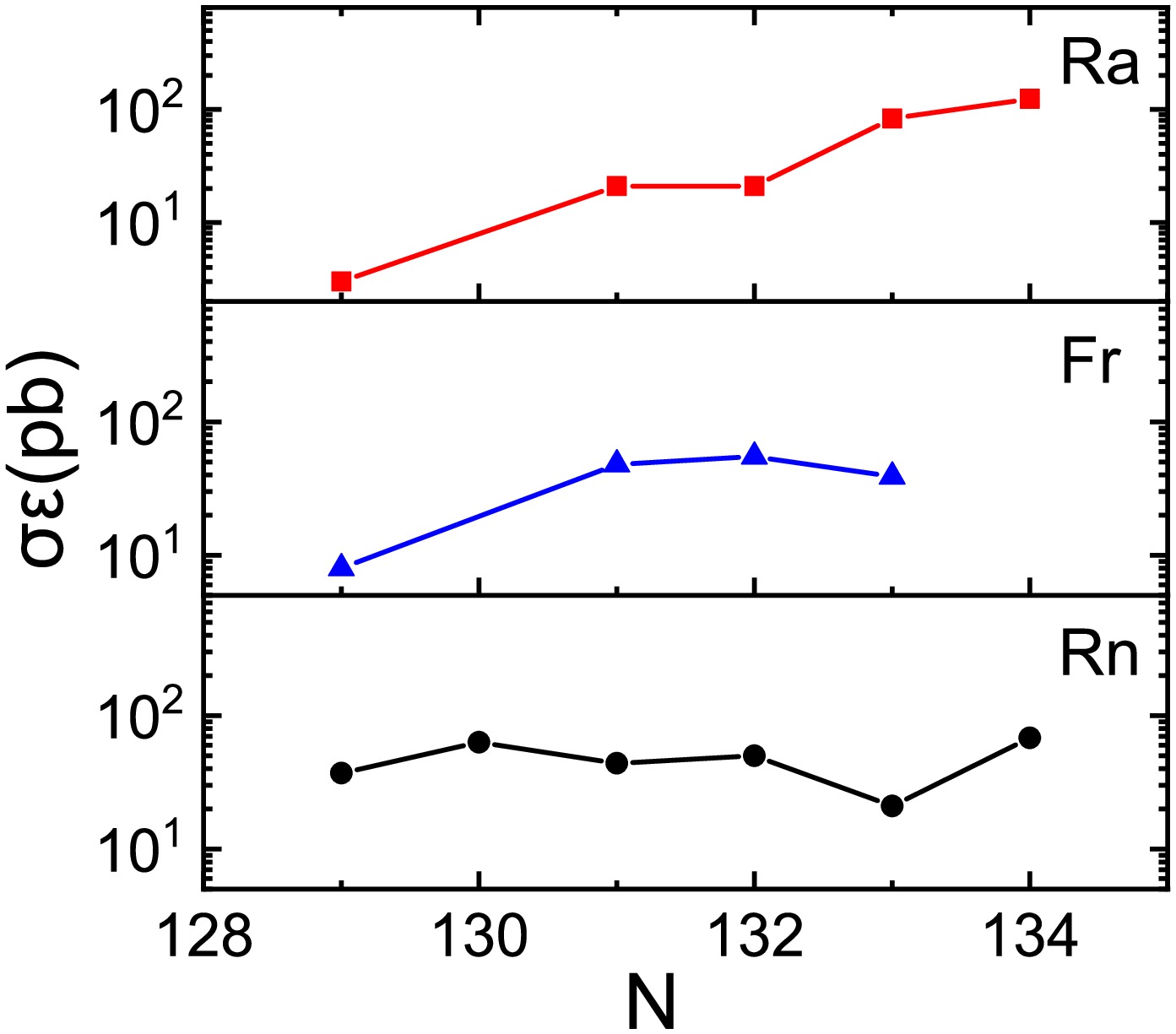

Figure 3.  (Color online) The variation of the product of the cross section and efficiency ($ \sigma\varepsilon $) for the implanted Rn, Fr, and Ra isotopes as a function of neutron number (N) in the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$ reaction.

In order to study the generation of these transfer reaction products, two experiments were also conducted, namely $ ^{40} {\rm{Ar}}$ + $ ^{209} {\rm{Bi}}$ and $ ^{54} {\rm{Cr}}$ + $ ^{232} {\rm{Th}}$. The beam energy of the former was 221 MeV, the target thickness was 60 µg/cm² C + 500 µg/cm² $ ^{209} {\rm{Bi}}$, and the beam dose was 2 × $10 ^{18} $. The beam energy of the latter was 312.1 MeV with the target thickness of 722 µg/cm², and the beam dose of 1.7 × $10 ^{18} $.

The distribution of transfer reaction products from both reactions was obtained using the same data processing method. Fig. 4(a) presents a comparison of the product distributions of the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$ and $ ^{40} {\rm{Ar}}$ + $ ^{209} {\rm{Bi}}$ reactions. Although some differences exist (the distribution of isotopes along the N and Z axes is relatively wider in the present data), a large overlap is observed in the isotopic distributions of the two reactions. Fig. 4(b) presents a comparison of the nuclides produced in the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$ and $ ^{54} {\rm{Cr}}$ + $ ^{232} {\rm{Th}}$ reactions, showing a near overlap in the nuclides produced by both experiments.

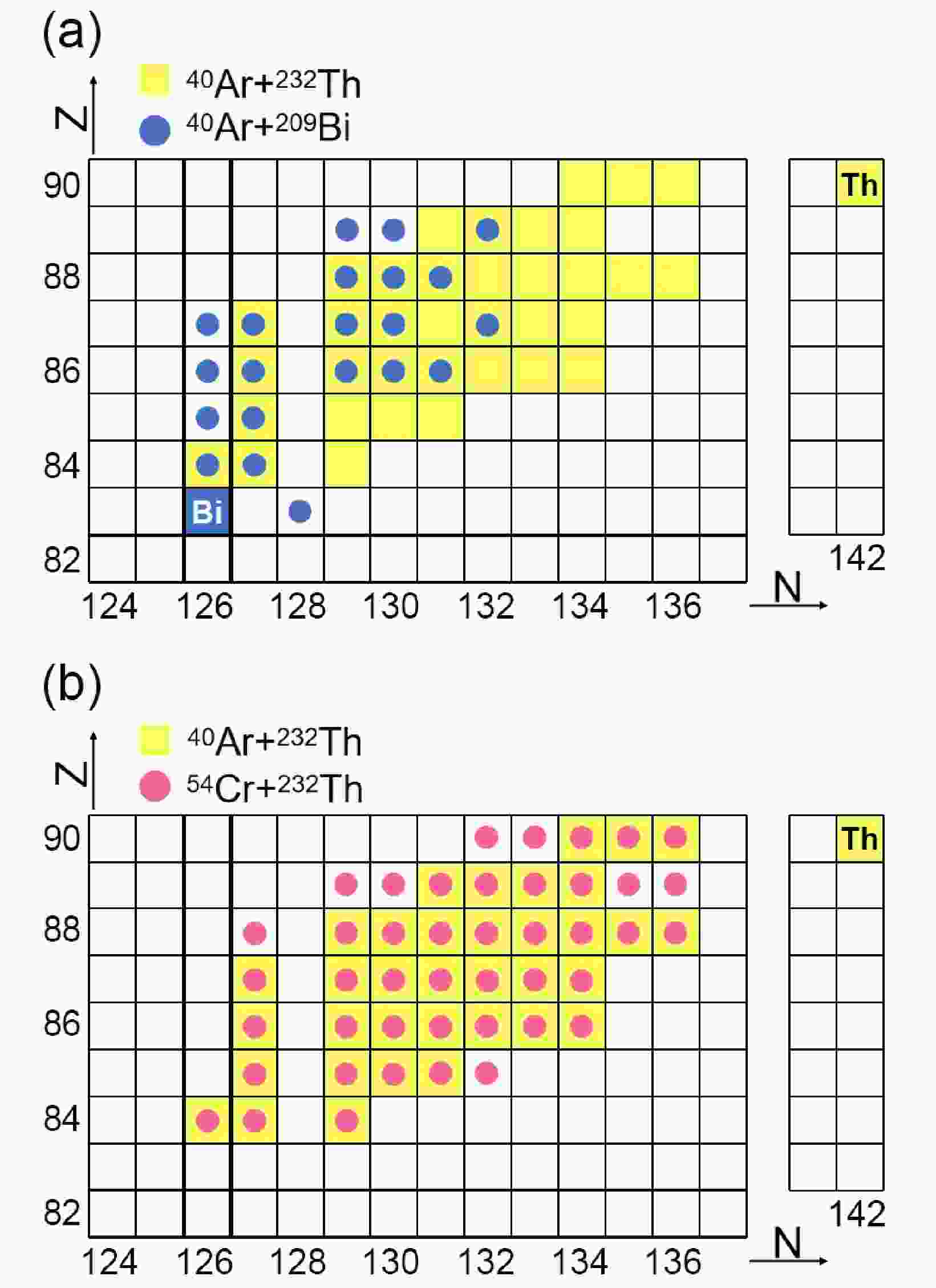

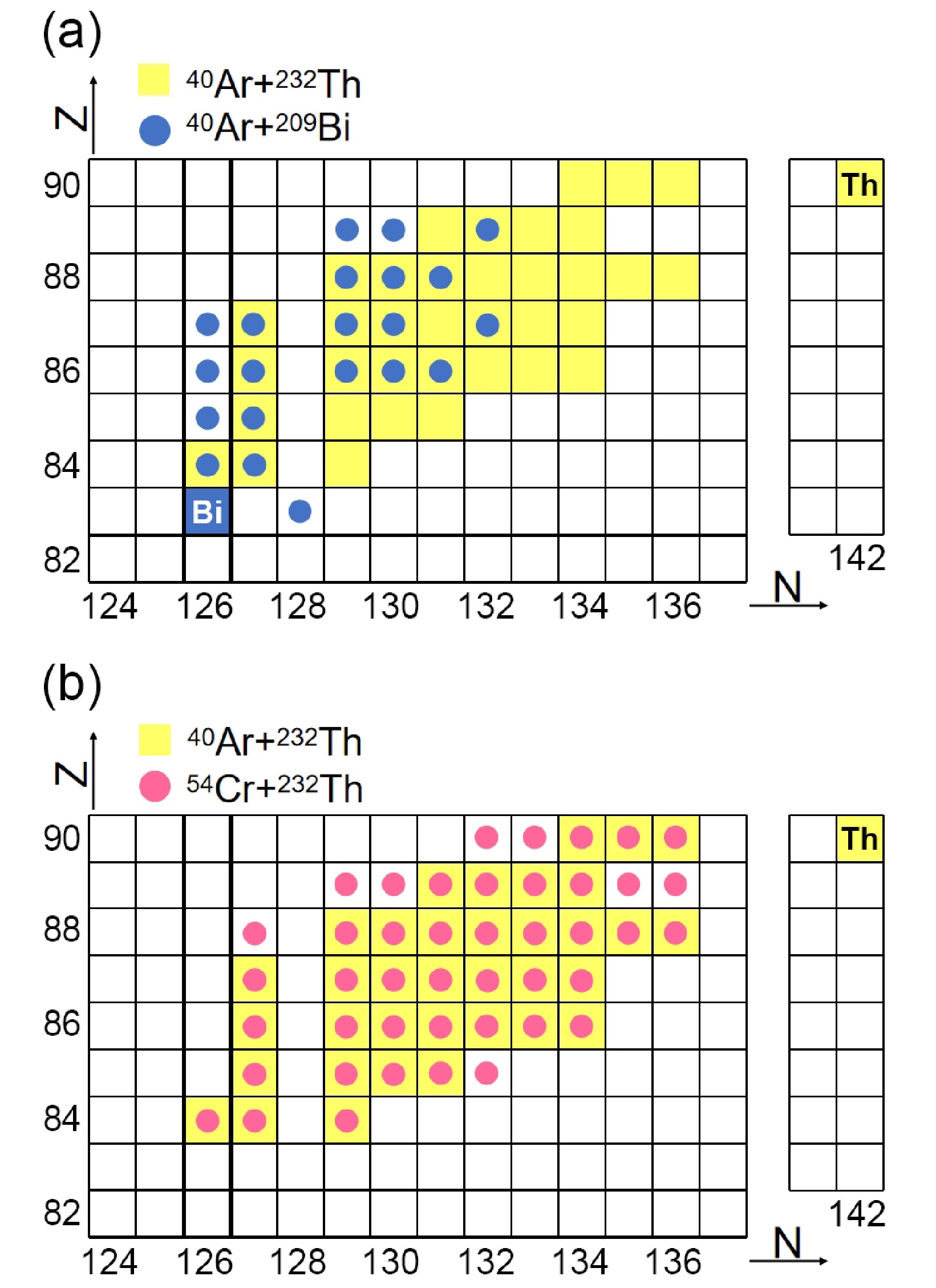

Figure 4.  (Color online) Comparison of the distributions of isotopes produced in the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$(yellow) reaction with those produced in the $ ^{40} {\rm{Ar}}$ + $ ^{209} {\rm{Bi}}$(blue circles) and $ ^{54} {\rm{Cr}}$ + $ ^{232} {\rm{Th}}$(red circles) reactions.

For the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$ reaction, the observed isotopes originated from a process in which a large number of nucleons were transferred from the target nucleus to the projectile nucleus. In contrast, in the $ ^{40} {\rm{Ar}}$ + $ ^{209} {\rm{Bi}}$ reaction, a significant number of nucleons were transferred from the projectile nucleus to the target nucleus. The possible reason is that in the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$ reaction, the nucleon flow tends toward mass and charge symmetry of the system, which is associated with the positive Q-value. Conversely, the $ ^{40} {\rm{Ar}}$ + $ ^{209} {\rm{Bi}}$ reaction exhibits the opposite trend, highlighting the influence of Q-values on nucleon flow behavior. The nuclides observed in the $ ^{40} {\rm{Ar}}$ + $ ^{232} {\rm{Th}}$ and $ ^{54} {\rm{Cr}}$ + $ ^{232} {\rm{Th}}$ reactions are produced by the loss of nucleons from the target nucleus. A comparison of the product distributions indicates that the transfer reaction products of the same target nucleus are largely independent of the projectile type. The results of these experiments are generally consistent with those obtained from the $ ^{50} {\rm{Ti}}$+$ ^{249} {\rm{Cf}}$ [17] conducted on the TASCA, but the distribution is narrower than that observed in the $ ^{48} {\rm{Ca}}$+$ ^{248} {\rm{Cm}}$ [15, 16] performed on the SHIP. This may be attributed to the fact that the SHIP device employs velocity for separation of recoil ions, which is better suitable for low-yield transfer reaction products.

In addition, since the mass distribution of the $ ^{40} {\rm{Ar}}$+$ ^{232} {\rm{Th}}$ reaction products is $ A=210-226 $, and the product of the charge numbers of the projectile and target nuclei ($ Z_{\text{p}}Z_{\text{t}} $ = 1620) exceeds the lower limit (approximately 1600) [33], the quasi-fission (QF) process is expected to begin after this critical value. Therefore, it is speculated that the transfer reaction products observed in this work may originate from the QF process.

The study of $ ^{40} {\rm{Ar}}$+$ ^{232} {\rm{Th}}$ reaction was performed at CAFE2 using SHANS2. The relative cross sections and implanted energies of the recoil products were extracted by using the method of position-time-energy correlations. The results demonstrate that the newly constructed gas-filled recoil separator can be utilized to investigate transfer reaction mechanisms. Consequently, SHANS2 is suitable for the synthesis of exotic nuclei from reaction channels other than fusion-evaporation. Based on the substantial nucleon flow populating the isotopes located “northeast” of $ ^{208} {\rm{Pb}}$, the possible origin of the identified recoiling products was suggested to be quasi-fission process. The results of the present work can provide a potential way to shed light on the understanding of the different reaction mechanisms, which is helpful for synthesizing new superheavy elements and nuclides.

The authors would like to thank the accelerator CAFE2 for providing the stable ⁴⁰Ar beam.
